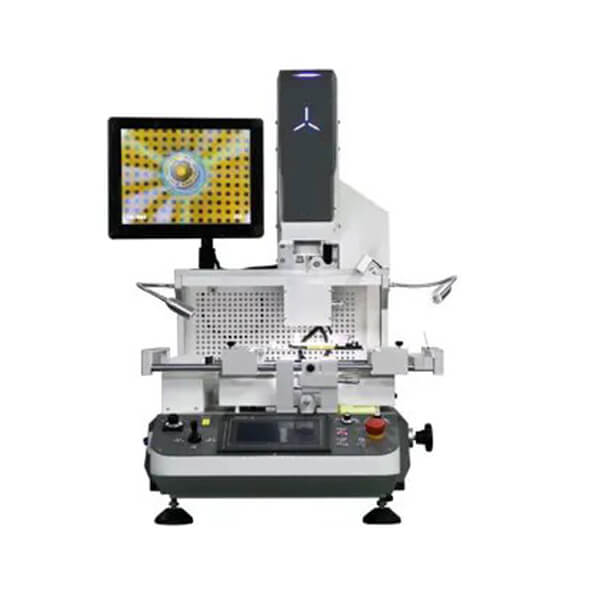

R7220A BGA Infrared Soldering Machine
1.Real-time Temperature Monitoring
Real-time temperature display, with automatic curve analysis function.
2.Optical Alignment System
High-definition CCD (2m pixels) digital imaging, automatic optical zoom system, manual control and laser red-dot alignment.
3.Rapid heating and cooling
The IR preheating zone is heated by a medium wave ceramic infrared heating plate, a multi-functional movable PCB fixing bracket, and a BGA bottom support frame. Laminar integrated cooling fan.
Specification
|
Power Supply |
AC220V±10% 50/60HZ |
|
Power |
5.65KW(Max)，Top heater(1.45KW) Bottom heater (1.2KW)，IR Preheater (2.7KW),Other(0.3KW) |
|
PCB Size |
412*370mm(Max);6*6mm(Min) |
|
BGA Chip Size |
60*60mm(Max);2*2mm(Min) |
|
IR Heater Size |
285*375mm |
|
Temperature Sensor |
1 pcs |
|
Operation Method |
7" HD touchscreen |
|
Control System |
Autonomous heating control system V2（software copyright） |
|
Display System |
15" SD industrial display (720P front screen) |
|
Alignment System |
2 Million Pixel SD digital imaging system, automatic optical zoom with laser red-dot indicator |
|
Vacuum Adsorption |
Automatic |
|
Alignment Accuracy |
±0.02mm |
|
Temperature Control |
K-type thermocouple closed-loop control with accuracy up to ±3℃ |
|
Feeding Device |
No |
|
Positioning |
V-groove with universal fixture |
|
Dimensions |
L685*W633*H850mm |
|
Weight |
76KG |
