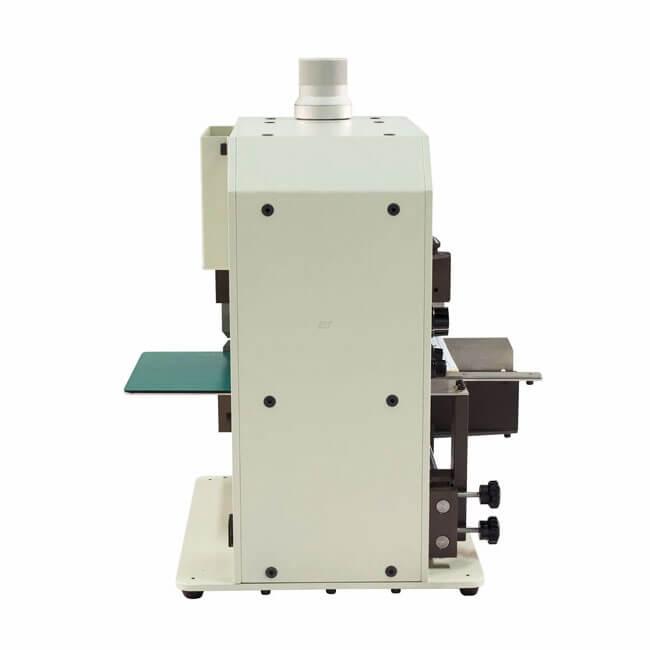

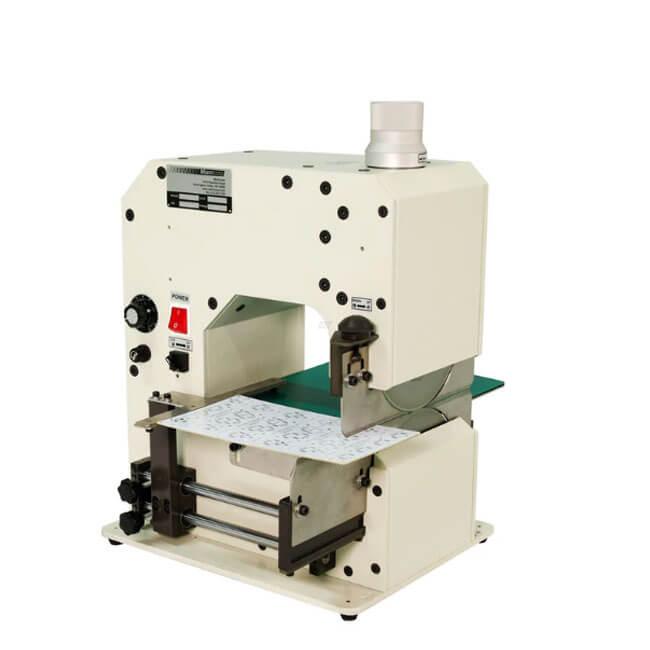

520N Motorized PCB Depaneler
The 520N PCB depaneler's unique "open tunnel" design provides sufficient clearance to separate pre-scored/V-groove single or double-sided boards.
With the 520N PCB depaneler, panels are securely stabilized to prevent wobble or unwanted board movement during process, ensuring clean separations of boards of virtually any length. Twin rotary blades cleanly separate panels, with the motorized upper blade doing to the separating while the below-board blade guides the PCB through.
520N SPECIFICATIONS：
| PCB Thickness | 0.5 mm to 2.0 mm |
| Max PCB Width | 6.3" (160 mm) |
| Max PCB Length | Unlimited |
| Score Angle | 30˚ |
| Minimum Component | 2 mm |
| Distance to V-Groove | |
| Max Component Height | 1.4" (35 mm) |
| PCB Materials | Anything but Aluminum |
| Separating Speed | 0-100 mm/sec |
| Depaneling Mode | Motorized |
| Production Volume | Low to Moderate |
| Power | 110V, 60Hz, 2A |
| Dimensions | 17" x 17" x 20.5" (430 x 430 x 520 mm) |
| Net Weight | 79.4 lbs (36 kg) |
| Shipping Weight | 91 lbs (41 kg) |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
