SDM223 Motorized PCB Depaneler

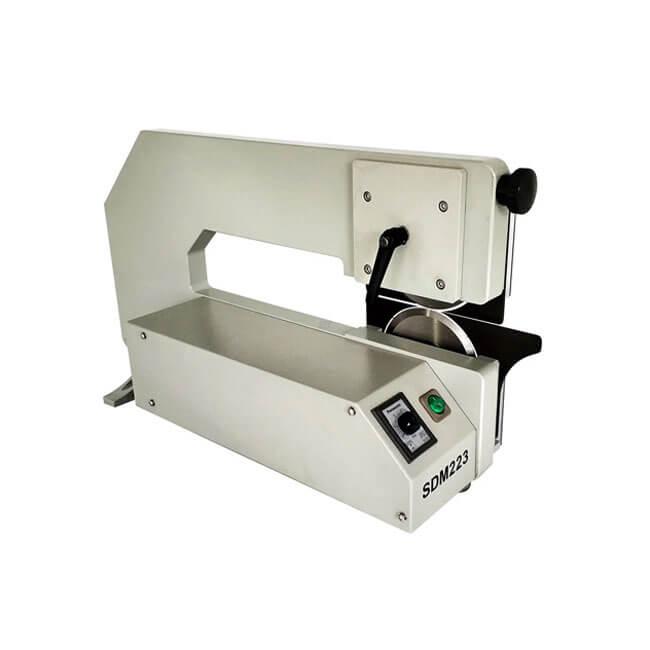

SDM223 motorized PCB depaneler provides dependable, burr-free separation of pre-scored boards without stress or damage to the PCBs, nearby components, or solder joints.
Details

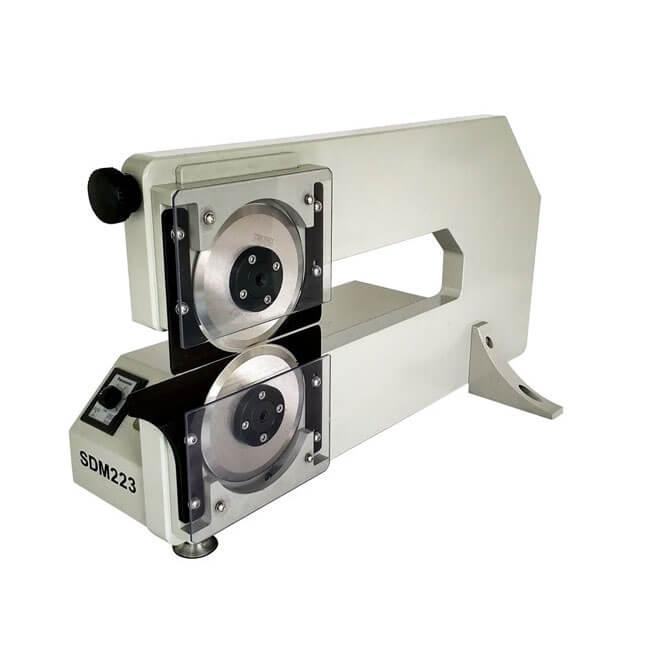

Operation is quick and easy. Simply align the V-groove with the extended lower guide. Lock the upper blade to the exact thickness of the PCB. The motorized lower blade transports and cuts the board while the upper "coasting" blade acts as a guide to maintain proper alignment along the pre-scored groove. SDM223 can separate densely-populated panels up to 400 mm (15.7") long with components located as close as 1 mm to the V-groove. Separating speeds are adjustable from 0 to 350 mm/sec (13.8"/sec) to provide the optimum balance of performance and throughput for each job.
Specifications
| PCB Thickness | 1.0 mm to 3.0 mm |
| Max PCB Width | Unlimited |
| Max PCB Length | 15.7" (400 mm) |
| Score Angle | 20˚ |
| Minimum Component | 1 mm |
| Distance to V-Groove | |
| Max Component Height | 1.26" (32 mm) |
| PCB Materials | Anything but Aluminum |
| Separating Speed | 0-13.8"/sec (350 mm/sec) |
| Depaneling Mode | Motorized |
| Production Volume | Low to Moderate |
| Power | 110V, 60Hz, 1.6A |
| Dimensions | 10.2" x 25.7" x 13.6" (260 x 653 x 346 mm) |
| Net Weight | 106 lbs (48 kg) |
| Shipping Weight | 161 lbs (73 kg) |
