Automatic PCB Loader Machine with Magazine

BASIC INFO

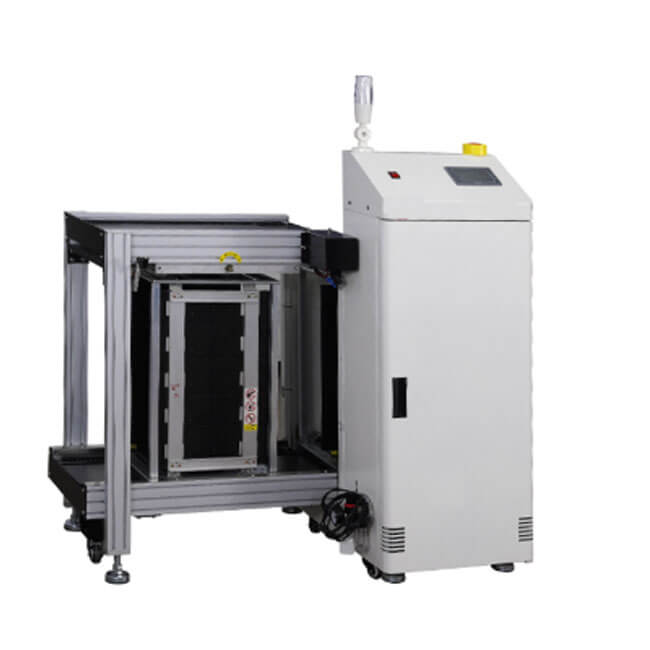

Automatic PCB Loader Machine with Magazine

PCB frame loading machine is a kind of automatic loading equipment for electronic components PCB board. It is usually composed of a conveying system, a positioning system, and an upper plate manipulator.
The working principle is to place the PCB board and component material that need to be mounted on the board in the material frame, and send the material frame to the machine through the conveying system. Then, the positioning system is used to accurately locate the position of the PCB board, and then the components are removed from the material frame by the upper board manipulator and placed on the PCB board accurately.
The advantages of PCB frame loading machine include:
High degree of automation, can greatly improve production efficiency and quality.
Precision positioning technology ensures that components are placed accurately on the PCB board.
Can adapt to different sizes and types of PCB board.
Simple operation, just set the parameters and procedures, the equipment can automatically complete the task of the board.
Reduce manpower requirements and reduce production costs.

1, appearance structure: sheet metal structure + aluminum profile in and out of the frame, surface spray treatment, color is white.
2, microcomputer PLC control system, stable and reliable work
3, sensitive touch screen display operation, with automatic fault diagnosis function, man-machine dialogue is convenient
4, a number of sound and light and touch screen prompt alarm function
5, can be set according to the PCB components above the height of the lifting step.
6, with automatic counting function, convenient production statistics
7, special gas path, humanized design to ensure that the PCB board is not pushed to improve production efficiency
8, compatible with standard SMEMA interface
9. Stepper motor is used to push PCB board of connection device
10, stepper motor push plate speed, distance, strength can be adjusted,
