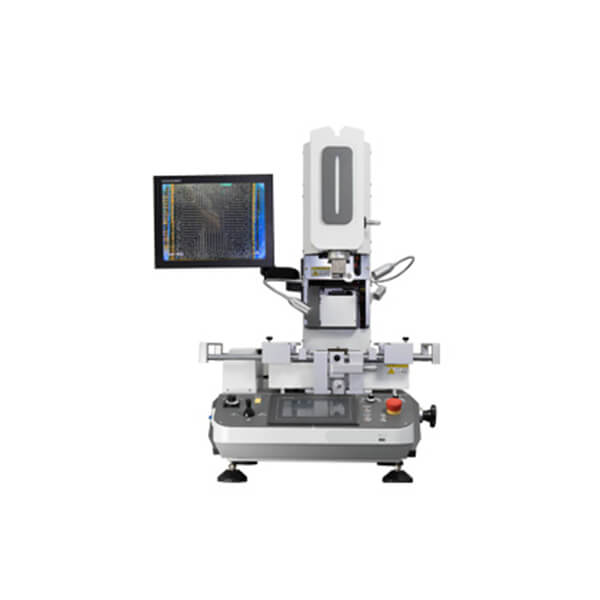

R720A LED/Micro Component Rework Station
R720A micro/mini BGA rework station is a precision optical intelligent LED rework station suitable for the rework of precision microdevices. This machine adopts imported HD CCD digital imaging, automatic optical zoom system, rework of precision microdevices, carbon fibre infrared BGA heating tube, and automatic feeding.
1.Carbon Fiber Infrared Heating Tube
The IR preheating zone uses carbon fiber infrared tube heating and high temperature resistant microcrystalline panel protection, and a multi-functional movable PCB fixing bracket.
2.Precision Tiny Devices and Automatic Feeding
Dedicated to the repair equipment of precision micro devices, automatic feeding device, optional LED feeder feeding fixture.
3.High Definition Display
Using imported high-definition CCD (2m pixels) digital imaging system with automatic optical zoom, automatic control laser red-dot precision alignment, using 15' HD industrial display screen.
Specification
|
Power Supply |
AC220V±10% 50/60HZ |
|
Power |
6.15KW(Max)，Top heater(1.45KW) Bottom heater (1.2KW)，IR Preheater (3.2KW),Other(0.3KW) |
|
PCB Size |
412*370mm(Max); 6*6mm(Min) |
|
BGA Chip Size |
60*60mm(Max);0.6*0.6mm(Min) |
|
IR Heater Size |
380*280mm |
|
Temperature Sensor |
1 |
|
Operation Method |
7" HD touch screen |
|
Control System |
Autonomous heating control system V2（software copyright） |
|
Display System |
15" HD industrial display ( 1080P 16:9) |
|
Alignment System |
2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator |
|
Vacuum Adsorption |
Automatic |
|
Alignment Accuracy |
±0.01mm |
|
Temperature Control |
K-type thermocouple closed-loop control with accuracy up to ±1℃ |
|
Feeding Device |
Yes |
|
Positioning |
V-groove with universal fixture |
|
Dimensions |
L810*W635*H870mm |
|
Weight |
84.5KG |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
