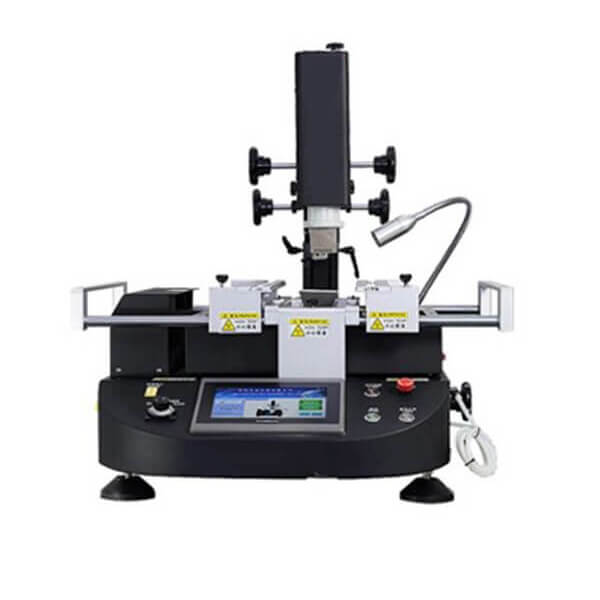

R5860 Hot Air BGA Rework Station
Temperature Curve Setting
High-definition touch screen operation, real-time display and, editing of temperature curves, each group of temperature curves can be set to 8 segments, 100 groups of temperature curves can be stored, with temperature self-organizing function.
Laser Red-dot Positioning Guide
Laser indicator for PCB and component positioning.
Vacuum Adsorption
The external vacuum suction pen is convenient for taking BGA.
Specification
|
Power Supply |
AC220V±10% 50/60HZ |
|
Power |
5.0KW(Max)，Top heater(0.8KW) Bottom heater (1.2KW)，IR Preheater (2.7KW),Other(0.3KW) |
|
PCB Size |
410*370mm(Max); 10*10mm(Min) |
|
BGA Chip Size |
40*40mm(Max); 10*10mm(Min) |
|
IR Heater Size |
375*285mm |
|
Temperature Sensor |
1 pcs |
|
Operation Method |
7" HD touch screen |
|
Control System |
Autonomous heating control system V1（software copyright） |
|
Alignment System |
Laser dot |
|
Vacuum Adsorption |
Manual |
|
Temperature Control |
K-type thermocouple closed-loop control with accuracy up to ±3℃ |
|
Positioning |
V-groove with universal fixture |
|
Dimensions |
L635*W620*H655mm |
|
Weight |
43.5KG |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
