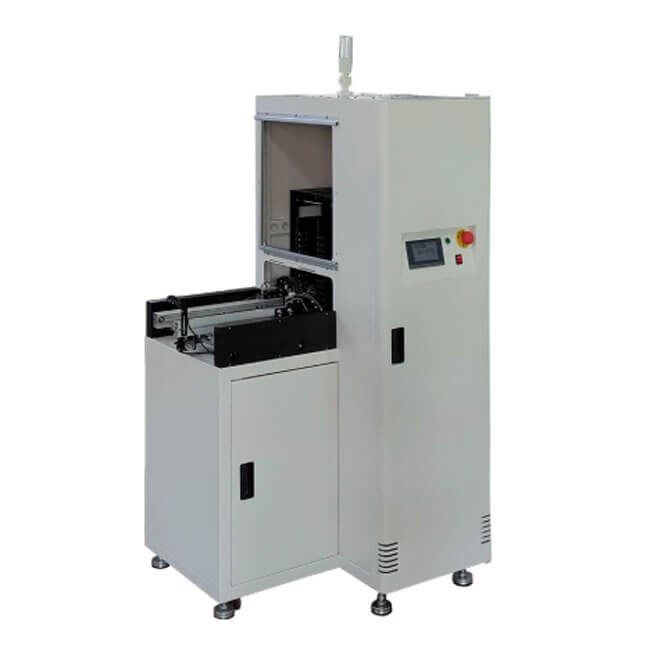

●External structure: thickened sheet metal structure and hardened aluminum plate frame, surface spraying treatment and surface blackening treatment.
● Microcomputer Panasonic PLC control system, stable and reliable work.
● Touch screen display operation, with automatic fault diagnosis function, convenient man-machine dialogue.
● The lifting mechanism adopts high performance fixed speed brake servo motor drive to lift Magazine.
● Storage quantity 20PCS, storage distance 20mm
● Any layer can be shielded.
● Touch screen can monitor the status of cache quantity and cache time.
● Automatic width adjustment in the cache magazine.
● Multiple alarms with sound and light and touch panel.
● The step of lifting the magazine can be set according to the PCB thickness.
● Set a variety of functions, PCB board can be first in first out, first in last out, and with straight-through function.
Specification
| Serial Number | Scope of Application | |
| 1 | control system | Japanese Panasonic PLC control |
| 2 | Touch screen | Display control EA43 full color touch screen |
| 3 | PCB board size (MM) | 350*（50-250）mm |
| 4 | PCB thickness | 0.6-3.0mm |
| Body | ||
| 1 | Body size L*W*H（MM） | 950*730*1650 |
| 2 | Body weight | 200KG |
| Control system | ||
| 1 | Power supply | Single-phase 220V |
| 2 | Starting power/no-load power | 1250W/200W |
| 3 | Cache layer to layer distance | 20mm |
| 4 | Number of caches | 20PCS |
| 6 | Lifting Device | Xinjie large inertia 750W servo system |
| 7 | Lifting screw rod | Taiwan Silver Slide (durable and wearable) |
| 8 | Compressed air | 5-6KG |
| 9 | clamped edge | Front fixed (can be customized after fixed) |
| 10 | direction of transfer | Left to right (can be customized right to left) |
| 11 | Send highly | 900±20mm |
| 12 | Interval choice | Any layer can be shielded |
| 12 | Withstanding voltage | AC terminal to ground 1500VAC,1 min |
| 14 | Using the environment | Environment without corrosive gas and dust |
| 15 | Anti-interference | Voltage noise: 1000VP-P, wave width 1us, 1 min |
| 16 | Fixed guide rail | 1 guide rail is fixed, 2 guide rail is movable adjustment |
| 17 | Transfer motor | Stepper motor transmission |
| 18 | Lifting motor | Xinjie large inertia 750W servo motor |
| 19 | Lifting driver | Xinjie 750W high precision driver |
| 19 | Communication lines | Standard four cores and two sets of signals |
| 20 | Controller | Japanese Panasonic PLC control |
| 21 | Photoelectric switch | Japanese Panasonic or German SICK sensor |
| 22 | Trough inductor | Omron |
