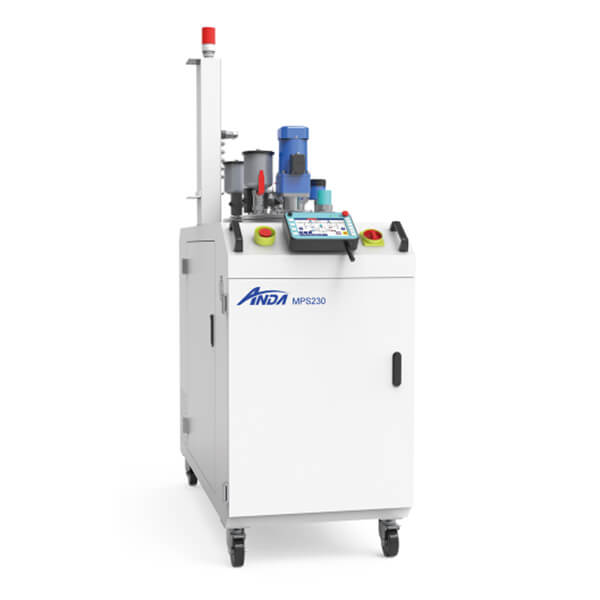

Anda MPS-230 Material Preparation Feeding machine
The ANDA MPS-230 is a two-component (2K) meter mix material preparation system for precision sealant and adhesive metering delivery. Our system provides simultaneous material preparation, temperature control, and feeding. Different parameters of each material can be controlled to deliver the desired mix ratio accuracy for components. Suitable for meter mix dispensing of self-leveling material, sealants, adhesives, silicones, polyurethane, epoxy resins, acrylics, elastomers, polysulfides, etc.
The ANDA MPS-230 can be paired with the iCoat-3P for automated three axes (X, Y, Z) dispense motion for inline automation processes or can be used offline for standalone batch applications.
Standard Features & Benefits:
PLC control with HMI
Material level monitoring
Pump pressure monitoring
Vacuum degassing
N2 inlet port
ESD grounding
Optional Features:
Auto-Cleaning (Mixer )
Tank/Hose heating control
Material auto refilling
Static/Dynamic mixing valve
Tank agitator
MPS-230 Specifications
|
Capability |
|
|
Tank Capacity |
20 L, 30 L |
|
Flow Rate (A+B) |
Max . 1000 g/min . |
|
Ratio |
100:100 to 100:10 |
|
±2% |
±2% |
|
Material Viscosity |
< 50,000 cps |
|
Degassing |
Vacuum |
|
Facility |
|
|
Standard Footprint |
L 1400 x W 700 x H 1600 mm (L 55.11" x W 27.56" x H 62.99") |
|
Weight |
400 kg (181 lb) |
|
Air Requirement |
0.6 ± 0. 05 MPa |
|
Power |
AC 220 V 50/ 60 Hz |
|
Power Rated |
1.5 kW |
