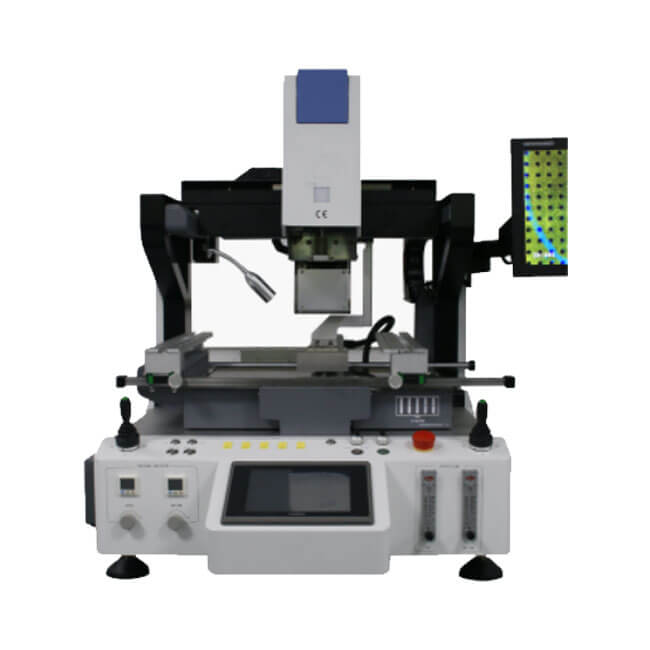

ZM-R7830A BGA SMD Rework Station
The ZM-R7830A BGA Rework Station is a high-end Nitrogen Capable Rework System. Great to help increase yield with Lead-Free Solders and a no-clean process. Place SMD components as large as 80mm with the high-resolution motorized vision system.
Features:
Power - AC 380V 50/60Hz
Total Power - Max 6800W
Heater power - Top heater 800W, bottom 800W, IR 5000W
Servo Drive system (Panasonic) +Panasonic PLC+8” Touch screen
Temperature control K-type (Closed Loop)
Positioning V-groove, PCB support + laser automatic positioning
PCB size Max 470×550mm Min 15×20 mm
BGA chip Max 80×80mm Min 2×2 mm
Dimensions L890×W790×H1000mm
Sensors 4
Weight 140kg
Accessories Include:
5 pcs nozzle set.
2 different size component pick-up tubes.
Online training video's.
On-Site installation & training is also available for an additional fee.
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
