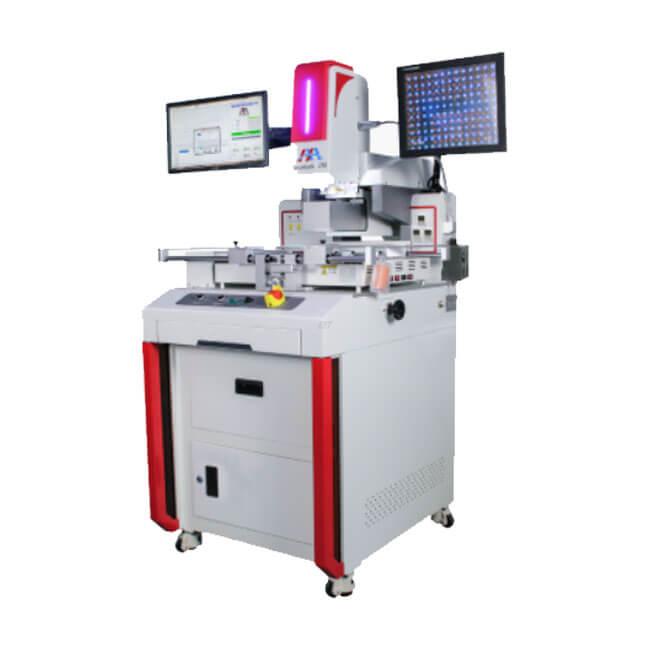

ZM-R7850A BGA SMD Rework Station

PCB size Max ：470×550mm Min 15×20 mm
BGA chip for Max 80×80mm Min 2×2 mm
Weight ：140kg
Dimensions ： L890×W790×H1000mm

BASIC INFO

ZM-R7850A BGA SMD Rework Station

The ZM-R7830A BGA Rework Station is a high-end Nitrogen Capable Rework System. Great to help increase yield with Lead-Free Solders and a no-clean process. Place SMD components as large as 80mm with the high-resolution motorized vision system.

Multifunctional Control Features:

Industrial PC control, it can set a variety of operating modes, real-time display of temperature curve, each curve can be set to more than 12 segments, it can automatically save the temperature curve to generate a large number of log files to facilitate the recall of historical parameters for traceability.

Convenient Temperature Setting and Saving:

Three temperature zones independently controlled by programming, convenient and quick setting of temperature parameters and temperature saving records, the top zone uses ceramic heaters, built-in vacuum tube is used for chip adsorption, electric control 360 degree rotation alignment, with pressure protection device, dual over-temperature protection and alarm function, software design has encryption and foolproof functions.

Bottom Heating System:

The medium-wave ceramic infrared heating plate imported from Germany is adopted, and the bottom temperature zone can be independently heated to adjust the distance from the PCB. Fast temperature control accuracy can effectively solve PCBA preheating and rework temperature.

Smoke Purification System:

The built-in three-level smoke purification system can filter and purify the toxic gas generated in the work, effectively protecting the environment.

HD Optical Alignment Module:

Imported HD CCD (2M pixels) optical alignment system, through the PC control system X/Y automatically move the optical lens alignment, using 15" HD industrial display (1080P 16:9) and 18.5" SD display operation. Equipped with automatic feeding device to realize feeding and receiving automatically.

Features:

Power AC 380V 50/60Hz

Total Power Max 6800W

Heater power Top heater 800W, bottom 800W, IR 5000W

Servo Drive system (Panasonic) +Panasonic PLC+8” Touch screen.

Temperature control K-type (Closed Loop)

Positioning V-groove, PCB support + laser automatic positioning.

PCB size Max 470×550mm Min 15×20 mm

BGA chip for Max 80×80mm Min 2×2 mm

Dimensions L890×W790×H1000mm

Sensors 4

Weight 140kg
