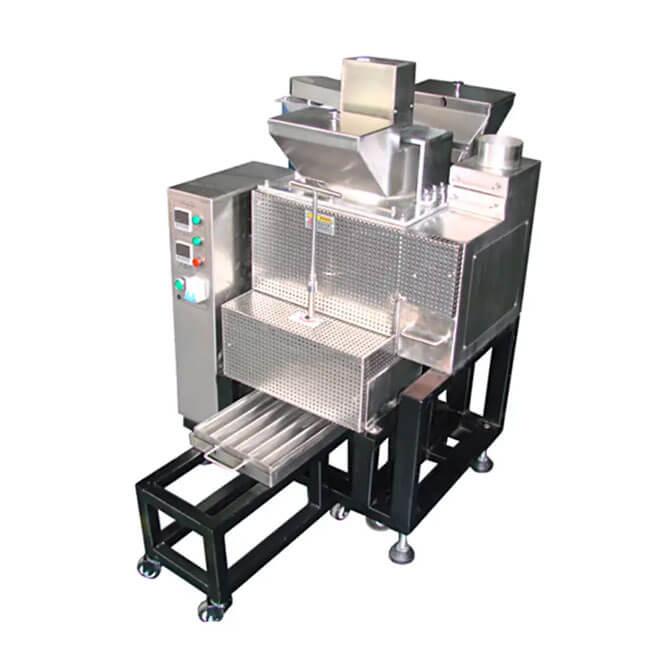

Solder Dross Recovery Machine SD10MS

Connected Power:4.5KW
Dimension (LxWxH mm):680 x 850 x1050
Heating-up Time:60mins
Normal Running Power:1.5KW

BASIC INFO

Solder Dross Recovery Machine SD10MS

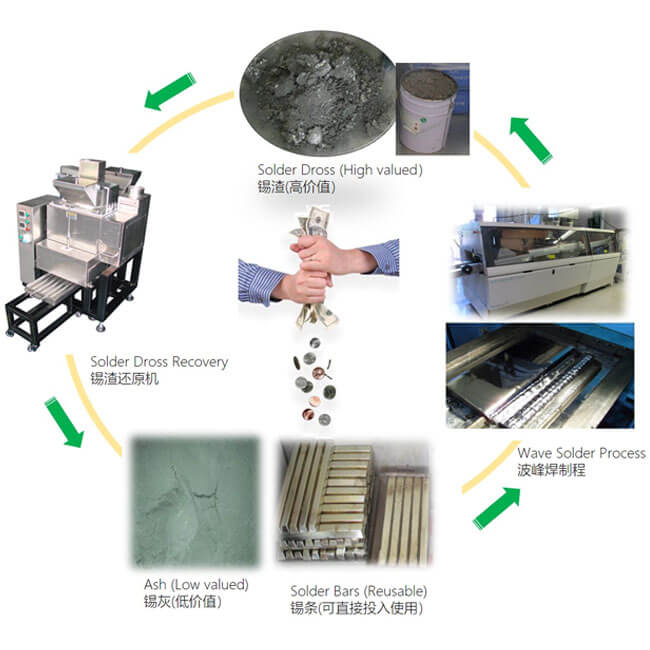

Solder bar usage saves at least 50%, the alloys separation rate is up to 98%, economic design with a small footprint and easy to transport; offline operation without dust, High recovery ration, high capacity.

Feature :

■ Pure physical separation without using any chemicals.

■ Tin alloy separation rate is up to 98%

■ The recycled solder bar can be direct use for wave soldering

■ Compact in size, all stainless steel and is easy to maintain

■ Patented mixing and separation system for improved separation efficiency

■ Solder pot is made of corrosion resisting ss 316L material with has a long service life

■ The unit uses a “U” shape heater covered cast iron heating plate, which will avoid deformation

■ OMRON temperature controller and SSR relay ensure accurate temperature control and long service life

■ Machine will alarm when separated solder is in the cabin and reaches the full volume, this indicates to discharge the solder

Reclaim capacity is about 15KG/Hr. solder dross

■ Machine is equipped with 2 sets of molding tray, which are convenient for forming solder bars

■ Separated tin oxide ash will drop in separate box, for easy disposal

■ Asset payback period / ROI <6 months

■ CE is optional and available

■ 15- year of R&D and sales in WW

Specifications :

Model	SD800	SD10MS	SD09F
Power Supply	3P 4￠ 380V @50HZ	1phase 220v @50HZ	1phase 220v @50HZ
Connected Power	5.8KW	4.5KW	2KW
Normal Running Power	1.8KW	1.5KW	1.0KW
Bottom Tin Capacity of Mixing Zone	100Kg	70Kg	10Kg
Heating-up Time	60mins	60mins	50mins
Controlling System	HMI+PID	PID + Buttons	PID + Buttons
Reclaim Capacity	30Kg/Hr.	15Kg/Hr.	6Kg/Hr.
Solder Bar Molding Tray	Automatic forming	2 EA	2 EA
Net Weight Approx.	500Kg	110Kg	45Kg
Dimension (LxWxH mm)	1800x1050x1600	680 x 850 x1050	500x250x650 140x330x390
