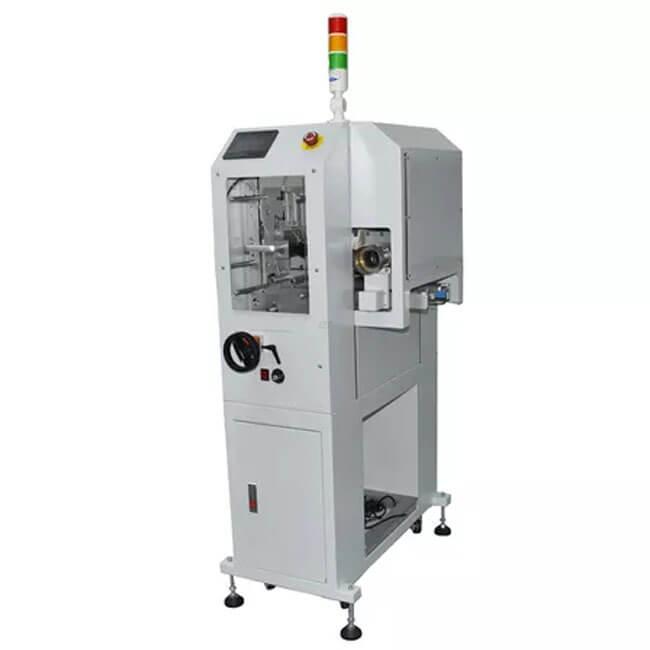

SMT online Automatic Cleaning Machine Industrial Ultrasonic PCB Cleaner
1. The PCB surface cleaning machine is used between the board loading machine and the printing machine. Before printing solder paste or red glue, it can destaticize the PCB and clean the PCB surface scraps, dust, hair, glass fiber, etc., so as to reduce the air pressure after the furnace. Eliminate hidden dangers such as poor soldering, and improve the pass-through rate of products. Suitable for AI and SMT process cleaning needs, or very high standard cleaning needs.
2. Features of this machine:
* Functional modular drawer design, which can switch between brush cleaning or roller brush synchronous cleaning at any time according to the needs of different work objects, with great flexibility
*After the high-speed spiral brush is enabled, the cleanliness of the work object can be improved, and the consumption of adhesive paper rolls for roller cleaning can be saved
* Can be applied to PCB cleaning in SMT process after AI, rollers and brushes can clean independently
*Adopt high-quality cleaning rollers to provide the best cleaning effect and service life
* Patented coupling transmission structure, more favorable machine operation, longer component life
*Roller set and support set drawer design is convenient for operation and maintenance
*The bottom support PCB can be used to make flat contact, which is more beneficial to the cleaning effect
*Three-color warning device, providing different warning messages
*SMEMA signal, easy to connect.
Specifications
|
Model |
QT-700 |
|
Items |
Spec |
|
PCB Direction |
L to R or R to L (Option ) |
|
Dimension |
L620*W880*H1330 |
|
Power supply |
AC220V 50/60Hz Max 80W |
|
Air Supply |
4～6kg/cm2 Intake pipe size 8mm |
|
Control Term |
Man-machine interface + PLC |
|
Brush Group |
1 set of anti-static high-density brushes + 1 dust collector |
|
Cleaning rollers |
last 2 |
|
Sticky Roll |
1 roll, total length of sticker: 400M/roll |
|
Static Elimination Device |
Inlet 1, extrance 1, and remove static electricity at the same time |
|
Effective cleaning width |
50-350mm |
|
PCB thickness |
0.7～2mm |
|
Delivery height |
900±25mm |
