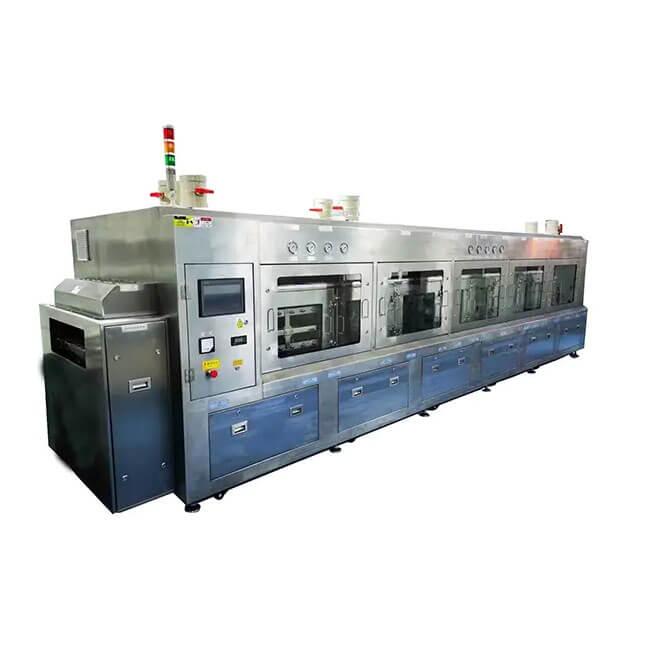

QT-7000 Online PCBA Water-based Cleaning Machine
Machine feature
1. PLC+touch screen friendly man-machine platform
2. Adopting online production method, high efficiency and stable product quality
3. Adopting the working design principle of medium and low pressure and large flow, it saves cleaning agent consumption, reduces the use cost of production consumables, and has economical and efficient cleaning capabilities.
4. Integrated design, with high scalability, flexible line assembly, and high cost performance, suitable for customer requirements with different production capacity needs
5. The body is made of corrosion-resistant SUS304 stainless steel and has a beautiful appearance.
6. The nozzle adopts quick connector method
7. The nozzles are made of polyethylene, with dense nozzle arrangement, medium and low pressure, uniform flow and large flow rate.
8. The angle and height of the wind knife are adjustable, and the wind cutting efficiency is high and the noise is low.
9. Optional chemical proportioning system with quantitative automatic rehydration function
10. The structure adopts humanistic design, such as fans, filters, etc., are reserved for installation and maintenance, which is convenient for repair and maintenance.
Machine description:
The body is made of SUS304 stainless steel and has a beautiful appearance.
Based on the good chemical properties of SUS304 stainless steel, the machine can adapt to alkaline cleaning agents and acidic cleaning agents, and there is no restriction on the type of cleaning agent used. The acid and alkali resistance is much better than that of ordinary stainless steel cleaning machines.
All cutting and drilling of SUS304 stainless steel are completed by laser processing。
The bottom of all tanks has three reinforced welds to ensure no leakage.
The bottom frame of the rack is a thickened steel frame wrapped in SUS304 stainless steel. While the stainless steel material ensures chemical performance, the steel chassis ensures the strength of the machine.
Customized 316 stainless steel fan nozzle
Chemical section condensation recovery system (optional)
Specifications
| Project name | Technical indicators | |
| 1 | Machine dimension | L7000*W1730*H1650mm |
| 2 | Power | ~ 125kw |
| 3 | Use power | ~65-85KW |
| 4 | Cleaning product size | 2000mm(L)*600mm(W)*80mm(H) |
| 5 | Cleaning fluid consumption | 2.0-4L/H |
| 6 | DI water consumption | 5L-10L/min |
| 7 | Transport speed | 10mm/min-1000mm/min |
| 8 | Control method | Touch screen + PLC control |
| 9 | Body material | SUS304 stainless steel |
| 10 | Mesh belt material | Stainless steel SUS316 |
| 11 | Air source requirements | 0.4-0.7（Mpa） |
| 12 | Power requirements | 3PH, 380 VAC, 5 wires |
| 13 | Weight | ~ 2200kg |
| 14 | DI water quality requirements | >15MΩ (Depending on customer products) |
| 15 | DI water inlet requirements | 1.0 m3/h |
| 16 | Exhaust air volume requirements | 1200 CFM |
| 17 | Noise | < 70 Db |
| 18 | Chemical washing area spray pressure | 25-90psi |
| 19 | DI rinse zone spray pressure | 25-90psi |
| 20 | Product weight | <10kg |
| 21 | Water tank temperature in chemical washing section | 25-75℃ |
| 22 | Wind knife angle | Angle adjustable, lift adjustable |
| 24 | Nozzle installation method | Quick connector method for easy replacement |
| 25 | Belt width | 600mm, customizable |
| 26 | Water pipe installation method | Quick connection method for easy maintenance |
| 27 | Filtration precision (second level) | Minimum 10μm filter element |
