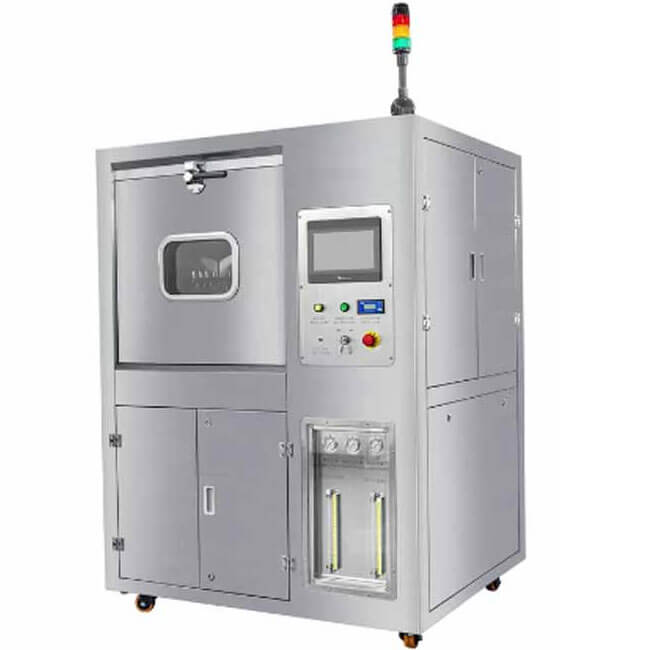

PCBA Cleaning Machine For SMT Machine Line PCB Production QT-5600

Machine dimension: 1300*1200*1850mm
Spray liquid tank capacity: 18L
Concentrate tank capacity: 30L
Cleaning time: 5~20min

BASIC INFO

PCBA Cleaning Machine For SMT Machine Line PCB Production QT-5600

The PCB Cleaning Machine is used for cleaning PCBA in SMT production line, spray cleaning design, the number of cleaning tank layers can be customized.

Poduct Description

560*610mm Offline PCBA Flux Cleaning Machine 2 layers cleaning basket machine is an off-line PCBA cleaning mahcine. It is a compact, energy-saving and environmental protection machine.

QT-5600 is used to wash off flux residual, solder balls, partichles on PCBA, such as: rosin flux, non-clean flux,water-soluble flux.Mainly used in military,aviation, aerospace, medical, new energy, automotive electronics industries, especially suitable for small amount, multiple types PCBA cleaning.

QT-5600 advantages:
1. Throughly clean rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations on PCBA.

2. 2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.

3. All processes are visible through a large observation window.

4 .Easy operation interface, quick setting clean parameters. Different passwords can be set.

5. Inner filter makes liquid used repeated.

6.Real-time measure DI water resistivity and monitoring cleaning effect. Resistivity range is 0~18 MΩ.

7. The remaining liquid in the pump and pipes are blown off by compressed air and flow back to cleaning tank. This function saves detergent up to 50%.

8. High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.

9. Totally SUS304 structure, solide, acid and alkali corrision-proof

Specifications

ITEM	SPEC
Cleaning basket size	L610xW560xH100mmx 2layers
Diluent liquid tank capacity	60L
Spray liquid tank capacity	18L
Concentrate tank capacity	30L
Cleaning time	5~20min
Rinse time	1~2 min/times
Rinse times	1~10times
Dry time	10~30min
Diluent liquid heat temp	room temp ~60ºC
PCB dry time	room temp~99ºC
Resistivity range	0~18MΩ
Liquid filter	0.2um
DI water filter	0.2um
Air filter	10um
Vent size	φ76XH50(mm)
Power supply	AC380, 3 Phases, 50/60Hz, 30KW
Air supply	0.5Mpa, 400L/Min
Machine size	L1300xW1200x1850(mm)
Machine weight	600KG
