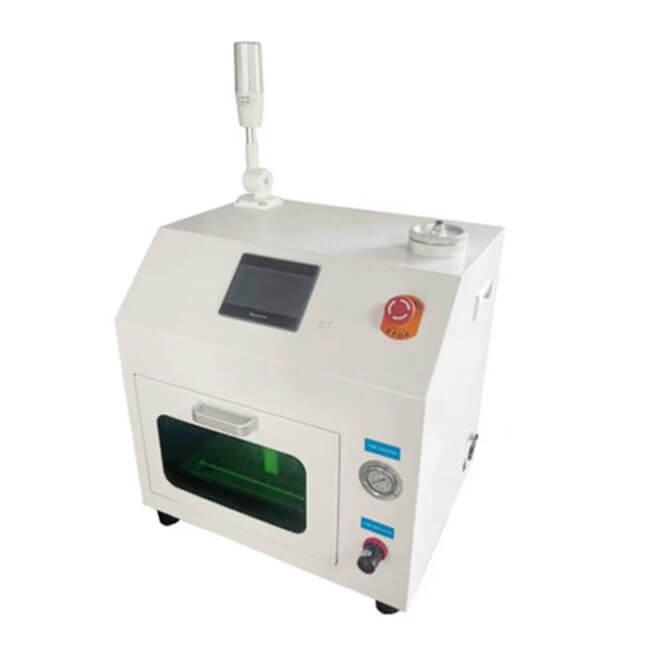

SMT Full Automatic Nozzle Cleaning Machine QT-NC30
The automatic nozzle cleaning machine adopts the multi-nozzle spray cleaning method, uses fluid mechanics to break up the water, produces extremely fine water mist, forms a strong kinetic energy at the speed of sound, and sprays onto the nozzle, forming a bubble above the nozzle to be cleaned. The continuous energy field smashes the dirt on the surface and inside of the nozzle. The machine does not require any solvents and can be cleaned with industrially pure water. Cleaning: The machine is fully automatic cleaning, 30 suction nozzles can be cleaned each time, different types of suction nozzles are equipped with different fixture trays, any type of placement machine suction nozzles can be cleaned, and automatically dried with compressed air after cleaning. Inspection: Take out the jig tray and put it on a special nozzle inspection device for inspection, and you can observe the real cleanliness of the nozzle after cleaning.
Feature:
* Clean 30 suction nozzles at a time, with short cleaning time and high efficiency.
* Instead of traditional manual cleaning, it solves the problem of ultrasonic cleaning and reduces the phenomenon of patch throwing.
* Atomized water flow supersonic jet cleaning, completely solves the dirt and impurities that cannot be cleaned by ultrasonic waves.
* The cleaning will not be unclean due to the smaller and smaller nozzle aperture.
* Cleaning is more thorough, directly prolonging the life of the suction nozzle, and the cleaning rate is over 99%.
* Easy to operate, the interface can be switched between Chinese and English.
* Never use cleaning agent, only clean with environmentally friendly pure water or deionized water.
* Using touch screen control interface, the operation is simple and easy to understand.
* It is suitable for all kinds of placement machine nozzles, and the cleaning effect is more obvious for cross-shaped, I-shaped and special-shaped nozzles.
Specifications
|
Model |
QT-NC30 |
|
Machine Dimension |
440*500 *530mm |
|
Weight |
35KG |
|
Cleaning Fluid Type |
industrial pure water |
|
Consumption |
≤100ml/min |
|
Gas source |
Compressed air |
|
Working Pressure Range |
0.5 - 0.65Mpa (when cleaning) |
|
Injection Pressure |
≤0.4Mpa |
|
Air Consumption |
Below 500NL/min |
|
Voltage |
Voltage |
|
Rated Power Consumption |
Maximum 100W |
|
Nozzle Tray |
30 bits |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
