SDM313 Pneumatic PCB Depaneler

PCB Thickness：0.5-2.0 mm
Max PCB Length：300 mm
Max Component Height：.79" (20 mm)
Minimum Component Distance to V-Groove;0.5 mm

BASIC INFO

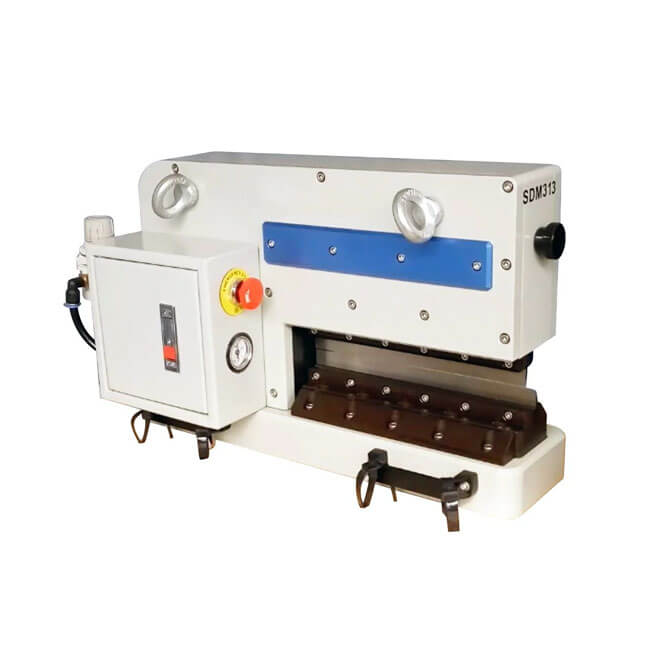

SDM313 Pneumatic PCB Depaneler

PCBs are separated by the SDM313's dual wedge-shaped knives in one gentle rocking motion that shears the panel along the score line, without stress or damage to the PCBs or components. This machine is effective on standard circuit boards as well as metalized, flexible and ultra-thin PCBs.
Even when metaled circuit boards are processed – such as those populated with heat-generating LEDs that require heat-dissipating metal inner layers – this machine will easily make the cut.

SDM313 also cuts flexible and ultra-thin PCBs (down to 0.5 mm thick) clean, with no ripping or tearing, even when sensitive components such as delicate ceramic capacitors, are mounted within 0.5 mm of the score line. The linear, rather than circular, cutting surfaces allow for faster separations without added stress.

Alignment between the SDM313's linear cutting blades and the panel's score line is achieved using a knob at the top of the machine. The narrow separation between the upper and lower blades (a maximum of 4 mm) protects the operator from the blade edges.

Specifications

PCB Thickness	0.5-2.0 mm
Max PCB Width	Unlimited
Max PCB Length	300 mm
Score Angle	20˚
Minimum Component	0.5 mm
Distance to V-Groove	0.5 mm
Max Component Height	.79" (20 mm)
PCB Materials	All Materials Including Aluminum
Separating Speed	N/A
Depaneling Mode	Pneumatic
Production Volume	High
Power	60 to 80 psi (4 to 6 bar)
Dimensions	10.1" x 23.4" x 14.9" (259 x 595 x 380 mm)
Net Weight	309 lbs (140 kg)
Shipping Weight	366 lbs (166 kg)
