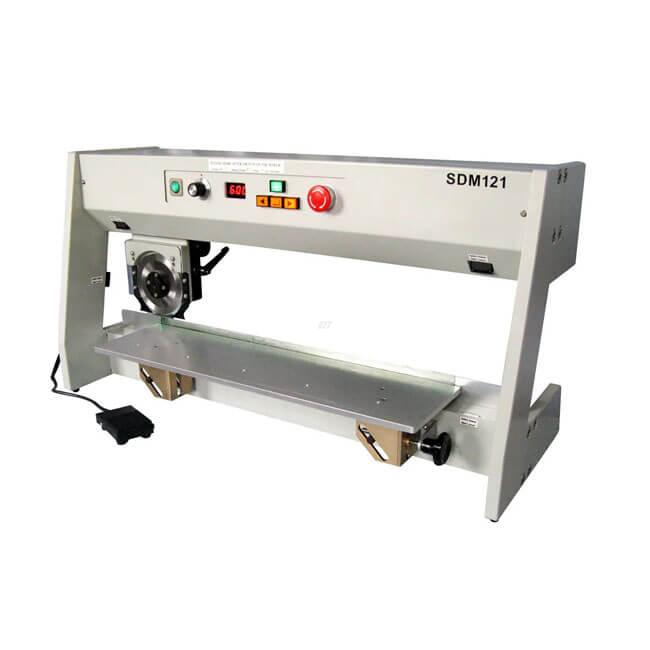

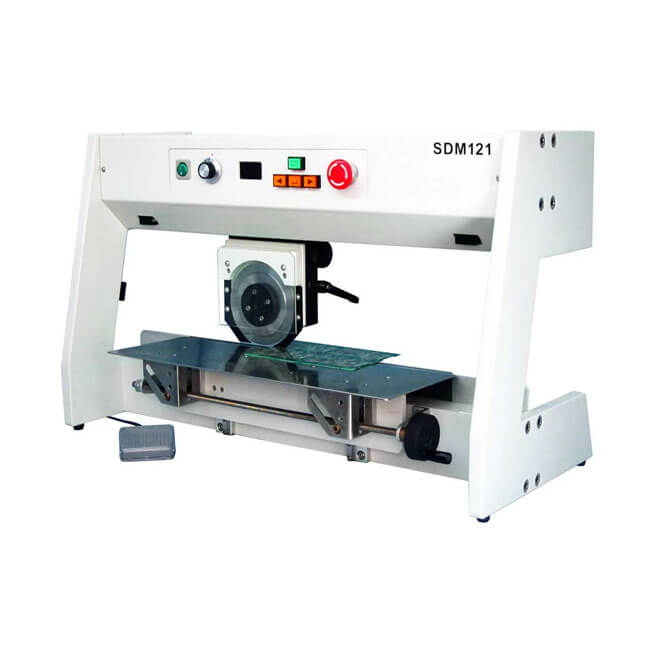

SDM121 Motorized PCB Depaneler
Motor-driven SDM121 separates v-scored PCBs without stress to boards, components or solder joints, eliminating post-breakout defects such as delamination and microcracking, even when components are located as close as 1 mm to the scoring line.
Operation is simple: the blades are aligned to the score line, the blade height is locked, and a depaneling speed is chosen. When the operator activates the foot switch, the topside circular blade moves automatically along the v-groove, providing a smooth, burr-free cut without operator guidance. The large processing table can be angled to allow separated PCBs to fall away from the cutter. For safety, the circular blade is shielded by shatterproof Plexiglas while light sensors halt the blade immediately if an obstruction is detected. SDM121 is suited for medium to high-volume production. A maximum component height of 32 mm provides sufficient clearance for most through-hole components and virtually all SMDs. The SDM121 is available with 445 mm (17.5") or 483 mm (19") maximum cutting length. Cut length is fully programmable; programmed length is displayed on an LED readout.
Specifications
| PCB Thickness | 0.8-3.0 mm |
| Max PCB Width | Unlimited |
| Max PCB Length | 17.5" (445 mm) |
| 19" (483 mm) Optional | |
| Score Angle | 20˚ |
| Minimum Component | 1 mm |
| Distance to V-Groove | |
| Max Component Height | 1.26" (32 mm) |
| PCB Materials | Anything but Aluminum |
| Separating Speed | 7.87"/sec (200 mm/sec), 13.8"/sec (350 mm/sec), 15.7"/sec (400 mm/sec), or 17.7"/sec (450 mm/sec) |
| Depaneling Mode | Motorized |
| Production Volume | Moderate to High |
| Power | 110V, 60Hz |
| Dimensions | Standard Size with 445 mm Cut Length: 29.5" x 13.6" x 18.4" (750 x 346 x 465 mm) |
| Large Size with 483 mm Cut Length: 35" x 13.9" x 18.4" (890 x 352 x 469 mm) | |
| Net Weight | Standard Size with 445 mm Cut Length: 102 lbs (46 kg) |
| Large Size with 483 mm Cut Length: 119 lbs (54 kg) | |
| Shipping Weight | Standard Size with 445 mm Cut Length: 166 lbs (75 kg) |
| Large Size with 483 mm Cut Length: 187 lbs (85 kg) |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
