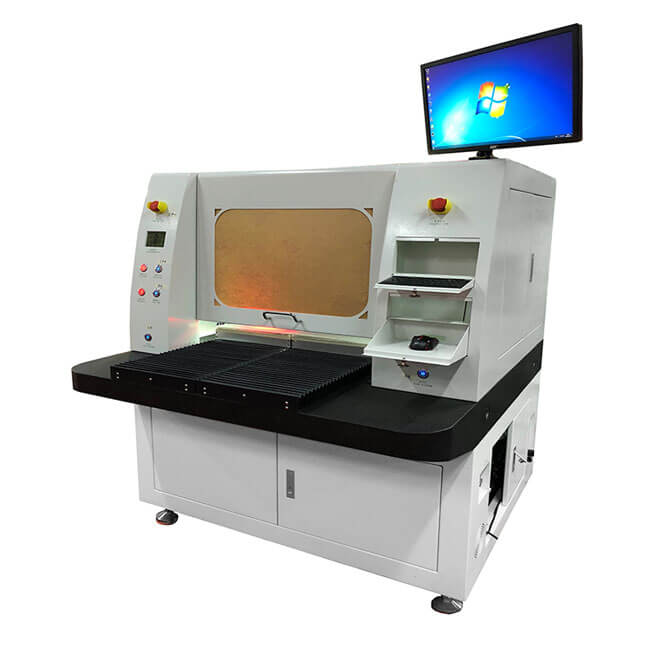

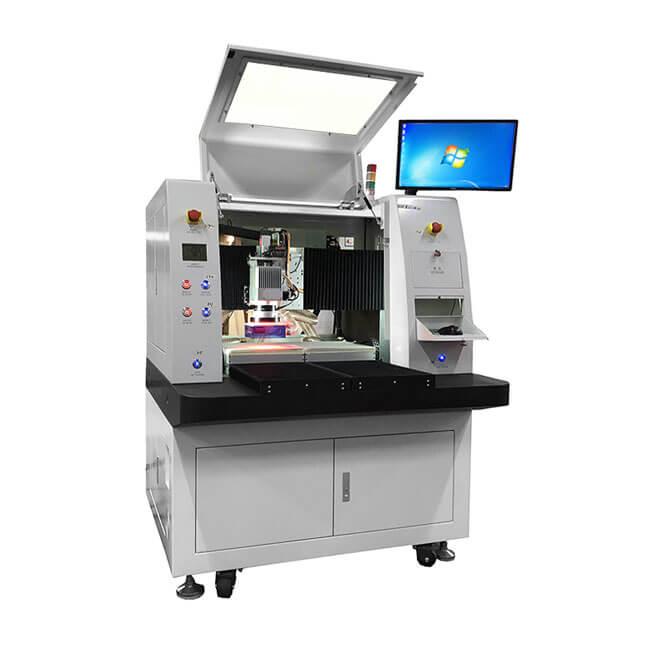

PCB FPC Inline Laser Depaneling Machine
Color: White
Type: UV
Size: 1480mm x 1360mm x 1412mm
Laser Brand: USA or Germany
Laser Scanning Speed: 2500mm/s (max)
Laser Power: 10-20W (optional)
Working Size: 450 x 430 mm
Precision: ±20 µm
Laser Wavelength: 355nm
Product: FPC Laser Cutting Machine
Highlight: PCB Cutting Shear, PCB depaneling machine
Features
Neat and smooth edge, no burr or overflow
More quick and easy, shorten the delivery time
High quality ,no distortion,surface clean& uniformity;
Gathering the CNC tech,laser tech,software tech…High accuracy, High speed.
Advantages
High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries;
Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
Reduce energy consumption, Cost savings;
Cost-effective, fast cutting speed, stable performance.
Application
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
Specifications
| Main body of laser | 1480mm x 1360mm x 1412mm |
| Weight of machine | 1500Kg |
| Power | AC220 V |
| Laser | 355 nm |
| Laser | Optowave 10-20W (US) |
| Material | ≤1.2 mm |
| Precision | ±20 µm |
| Positioning | ±2 µm |
| Platform | ±2 µm |
| Working area | 450 x 430 mm |
| Maximum | 3 KW |
| Vibrating | CTI (US) |
| Power | AC220 V |
| Diameter | 20 ±5 µm |
| Ambient | 20 ±2 °C |
| Ambient | < 60 % |
| The Machine | Marble |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
