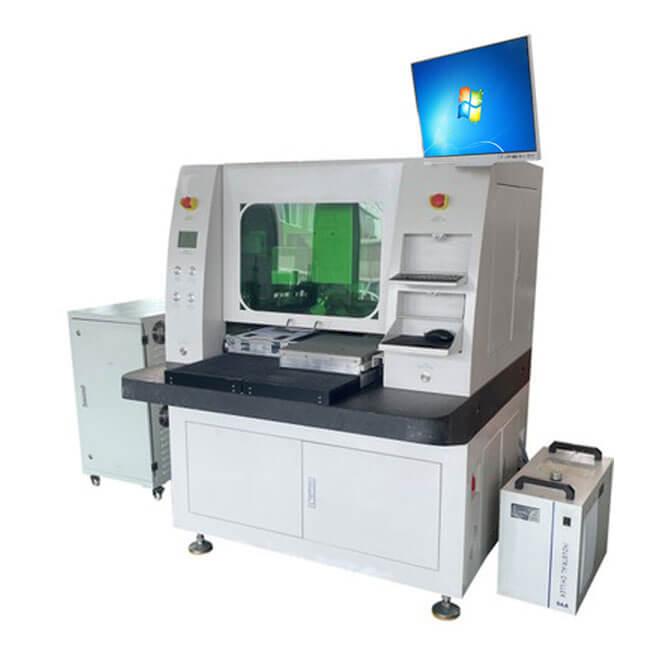

Dual Table PCB FPC Inline Laser Depaneling Machine
Colour: White
Power Rate: 10/15W
Working Area: 300*300mm
Laser Head: Solid-state UV Lasers
PCB Material: FPC, FR4
Name: Laser Depaneling
High Light: pcb shear cutter, metal cutter machine
Features
High-precision: Low-drift galvanometer combined with fast ironless linear motor system platform for fast cutting. Keep high precision in micrometers.
Easy to learn: Self-developed Windows control system, easy-to-use Chinese/English interface, and friendly Views, powerful and diverse, easy to operate.
Intelligent Automated: Using high-precision CCD to automatically locate and focus, positioning is fast and accurate, without manual intervention, simple operation, realize the one-button mode of the same type, greatly improve production efficiency. Automatic galvanometer correction, auto focus, full implementation Automation, using laser displacement sensor to automatically adjust the height of the focus to the table, to achieve rapid alignment, saving time.
Suitable for cutting: FPC, PCB, chip cutting, cell phone camera module. Fragments, layers, blocks, or selected areas are cut and formed directly. The cutting edges are neat, smooth, smooth, and free of burrs. Overfilled plastic. Products can be arranged in a matrix for automatic positioning and cutting, especially for fine, difficult and complex patterns .
High-performance lasers: Adopting solid-state UV lasers from international brands, with good beam quality and focused spot. Small, uniform power distribution, small thermal effect, small kerf width, high cutting quality, etc.
Advantages
High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries;
Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
Reduce energy consumption, Cost savings;
Cost-effective, fast cutting speed, stable performance.
Application
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
Specifications
| Main body of laser | 1480mm*1360mm*1412 mm |
| Weight of machine | 1500Kg |
| Power | AC220 V |
| Laser | 355 nm |
| Laser | Optowave 10-20W(US) |
| Material | ≤1.2 mm |
| Precision | ±20 µm |
| Positioning | ±2 µm |
| Platform | ±2 µm |
| Working area | 450*430 mm |
| Maximum | 3 KW |
| Vibrating | CTI(US) |
| Power | AC220 V |
| Diameter | 20±5 µm |
| Ambient | 20±2 °C |
| Ambient | < 60 % |
| The Machine | Marble |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
