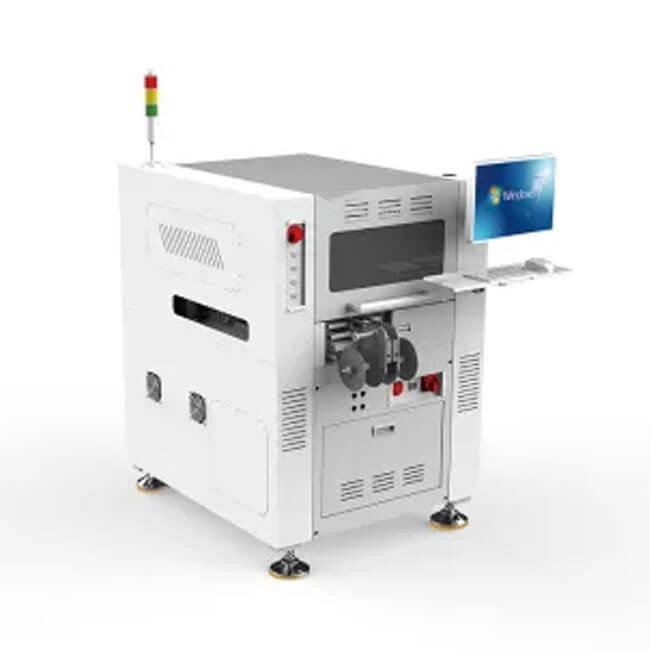

HY-X3 SMT PCB Labeling Machine
The SMT PCB Labeling Machine is used for automatic labeling of SMT on-line or off-line production of PCB boards
Product Description
SMT PCB Labeling Machine Features：
▹ The whole machine adopts high-strength iron plate, which is stable and strong
▹ PC+19-inch display+professional machine control software
▹ Full closed loop control mode, servo motor + high lead screw
▹ Visual programming and offline programming confirmation, high efficiency
▹ Mark point scan (PCB offset correction)
▹ Intelligent material deviation correction (single vision, increase attachment speed)
▹ Standard SMEMA interface, can be connected online with other equipment
SMT PCB Labeling Machine Technical Specification：
Number of Feeders
2PCS
Labeling speed
Average 2700 PCS/H
Labeling accuracy
±0.09mm
Transport height
910±30mm
Transport system
conveyor
Direction
left to right/Right to Left
Air supply
0.6MPa±0.1
Electricity Consumption
2500W
Power Specifications
AC220V±10%,50/60HZ
Model
HY-X3
Minimum PCB(A) size (L*W)
50-50mm
Maximum PCB(A) size (L*W)
320×380mm
Part size
3*3to60*60mm with different color
Tape width
≤80mm
PCB thickness
0.4-5mm
Dimensions (L*W*H)
1000×1250×1450mm
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
