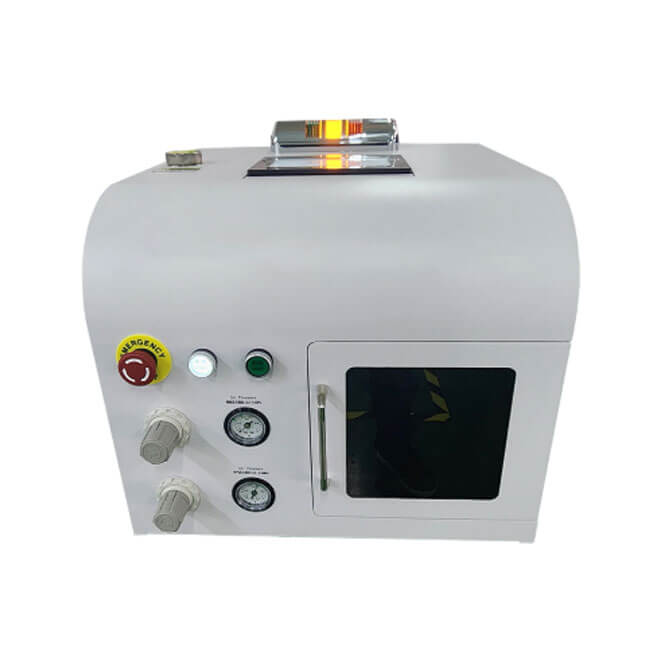

Fully automatic nozzle cleaning machine QT-24
During the SMT process, the nozzle is easy to stick to solder paste or dirt, etc. If it is not maintained for a long time or the cleaning is not thorough during maintenance, the solder paste and dirt will harden, resulting in failure to use normally. It increases the difficulty of cleaning, and even causes blockage and waste after a long time. These problems can be easily solved by using a nozzle cleaning machine.
Fully automatic nozzle cleaning machine QT-24
1.Taiwan Weinview touch panel + ＋Mitsubishi PLC control system.
2.USU-304 materials are used in all parts which possibly touch water.
3.Japan SMC，the pressure regulating valve and pressure gauge are designed according to ergonomics.
4.Siemens, the mechanical life of its button switch reaches 300 thousand times to ensure the safety and durability of equipment.
5.All rotating parts adopt Japan TAKIGEN standard parts which can maintain the initial torque for a long time and are long lasting &durable.
6.The Gemany’s Igus oil-free bearing track is free from routine maintenance.
Parameter
|
Equipment size |
L× W×H (mm) |
505 ×570 ×500 |
|
Equipment weight |
quality |
70KG |
|
Cleaning liquor |
Cleaning liquor type |
Industrial purify water |
|
consumption |
≤400CC/H |
|
|
Liquid used |
Air source |
Compressed air |
|
Pressure range |
0.5 -0.6Mpa(While cleaning) |
|
|
Jet pressure |
≤0.4Mpa |
|
|
Air consumption |
280NL/min.or less |
|
|
Power |
Voltage |
AC200-240V |
|
Rated power consumption |
Max. 200W |
|
|
Suction nozzle tray |
Specification |
Default 24 positions |
|
Object to be cleaned |
Mounting nozzle |
01005-2125 |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
