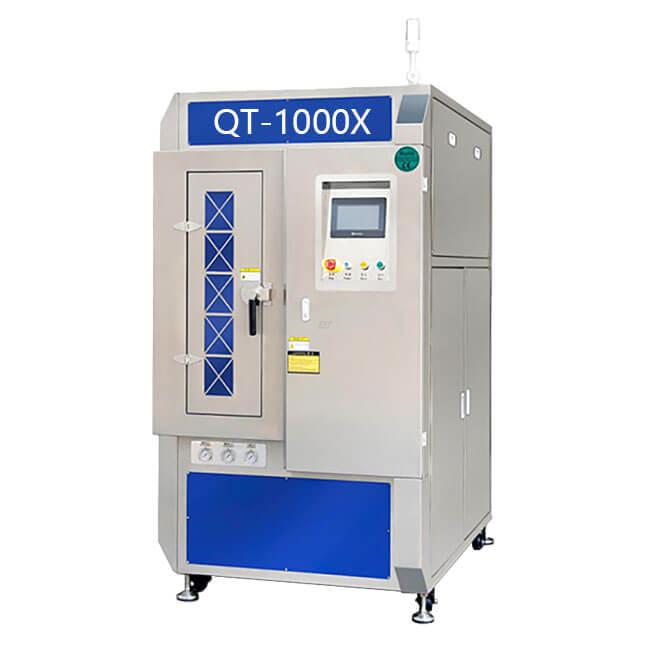

Automatic SMT Stencil Cleaning Machine QT-1000X
▶The cleaning tank, the original tank, and the spray tank are designed with a liquid level sensor overflow alarm.
▶The opening of the front door is designed with photoelectric sensor protection. When the equipment is cleaning, if the front door is not closed, the cleaning will stop to prevent liquid or water from spraying out.
▶The air source, DI water inlet, and heating system all have PLC monitoring and alarm systems, and double protection is designed to ensure that any failure will not damage the equipment.
▶The main parts are imported parts and well-known brands in the industry, such as pumps from Ingersoll Rand, CKD solenoid valves, Panasonic PLC, German rails.
▶The operating mechanism adopts the cleaning object to be thrown up and down on the screen, imported guide rail + stepping drive, and the spray arm and air knife are fixed.
Automatic SMT Stencil Cleaning Machine QT-1000X
What is stencil cleaning machine in the SMT process?
A kind of machine equipment for cleaning stencil in SMT work, mainly used for cleaning residues such as solder paste, red glue and silica gel on the stencil after printing
Features:
1. Fully automatic cleaning mode: the screen is thrown up and down, and the heated cleaning liquid is sprayed through the spray arm at high pressure and reciprocally, and the whole process of automatic cleaning, rinsing, and drying are automatic.
2. Visualization of the whole process: Visualization window and LED light device make the cleaning process clear at a glance.
3. Scientific nozzle design (patent): 8 spray arms on the left and right are distributed-completely solve the blind area of cleaning, the spray arms and nozzles are detachable.
The visual nozzle pressure can be adjusted: it solves the collision and splashing problems of small workpiece sizes under high-pressure spray conditions during cleaning.
5. The viewing window and the entrance of the screen are protected by photoelectric sensors to prevent the cleaning liquid from spilling out and ensure its safety.
6. Comprehensive cleaning system: the standard diluent tank\rinsing tank heating system improves the cleaning efficiency. Shortens the cleaning time and is compatible with running water washing
Or chemical cleaning, for SMT; Thorough and effective cleaning of organic and inorganic contaminants such as rosin and solder paste on the PCBA surface of THT.
7. Washing and rinsing use online independent built-in filter system, independent electric pump, independent spray arm, independent nozzle, and solvent circulation use to prevent the washing and rinsing from leaching liquid, which can increase the service life of the rinsing water and reduce the amount of solvent.
8. The quality of the fuselage: the overall 304 stainless steel fuselage, resistant to acid, alkaline, and other cleaning fluids.
9. When a solid obstacle occurs, it has an emergency stop button and leakage protection function.
10. Lower operating cost: lower equipment investment cost, localized service, team, and sufficient spare parts supply.

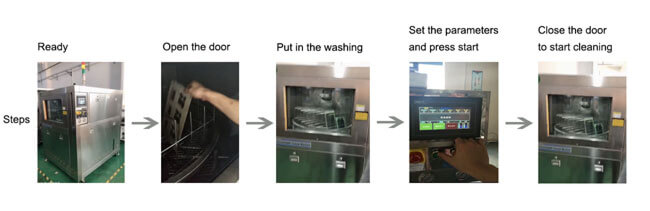

Easy to use
Applications:
QT-1000X stencil cleaning machine is a fourth-generation stencil cleaning machine specially designed for "Water-Based" process. Automatically complete the cleaning, rinsing and drying process (using a unique double eight spray arms cleaning and rinsing design, double four air knives air cutting drying design, cleaning and rinsing using online filtration to ensure cleanliness)

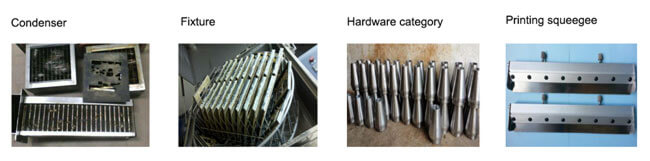

Application: SMT stencil, copper mesh, glue mesh, glue printing jigs, and PCB misprint cleaning, which can effectively clean the residual solder paste, red glue and other contaminants on the surface after printing and the hole wall.
Parameter
Cleaning area size:
750mm(L) ×750mm(W) × 40mm(H)
physical dimension:
1100mm(L) ×1650mm(W) × 1980mm(H)
Nozzles in cleaning area:
40 nozzles, 304 stainless steel, fan-shaped 65°
Nozzles in rinsing zone:
40 nozzles, 304 stainless steel, fan-shaped 65°
Drying area:
4 air knives, 304 stainless steel
Cleaning size range setting:
50—750mm
Cleaning time:
0~100 minutes (adjustable)
Rinsing time:
0~100 minutes (adjustable)
Drying time:
0~100 minutes (adjustable)
Power/Air source:
Three-phase five-wire system, 380V/18Kw (rated power)/0.45Mpa-0.7Mpa
Weight:
590KG
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
