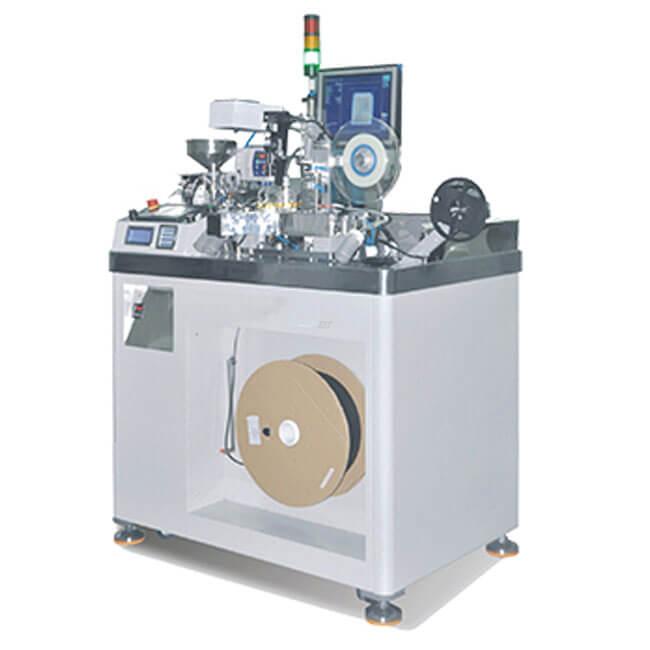

Automatic Taping Machine/Test Taping Integrated Machine

BASIC INFO

Automatic Taping Machine/Test Taping Integrated Machine

Model: SY-1904

Accurate positioning mechanism, low noise and sensitive response;

Optional marking test and visual inspection station;

Optional test and classification station;

Automatic troubleshooting, automatic tape cutting, so that one person can watch multiple devices at the same time;

Modular Design

Structural modular design (universal)

Easy adjustment of mechanism parts (microcards, etc.)

Modules are easy to replace and low cost

Smart production

Connection of MES system

Human-machine linkage

Fast data transfer and storage

Good stability and high detection accuracy

High-strength machined precision parts

100% brand electronic components

The most mature testing institution and the most leading brand CCD inspection system

Specification Parameters

Adapt to the product	SOT, SOD, crystal oscillator, chip resistor, chip capacitor, etc.
UPH	40K/H (related to product type)
Sealing method	Heat sealing/self sealing
Operation method	Touch screen
Carrier tape width	8-32mm
Statistics function	Production data statistics, yield statistics
Visual system	Detection of size, appearance defects, characters, colors, etc.
Feeding method	Manual feeding/automatic feeding
Feeding method	Vibrating plate
MTBA	≥1Hr
Filling accuracy	100%
Detection accuracy	99.95%
Machine size	14107801810mm (length, width and height)
Machine weight	350KG
Power supply	220V 50HZ
Gas source	0.5Mpa
Rated power	1100W
Test function	Select the test machine according to the test item
Marking function	Optional increase
