Automatic Solder Paste Mixer

Dimension(mm) :400×400×480(mm)
Remove air bubbles time ；0-99H
Revolution speed ：600RPM/Min
Weight Approx.：48Kg

BASIC INFO

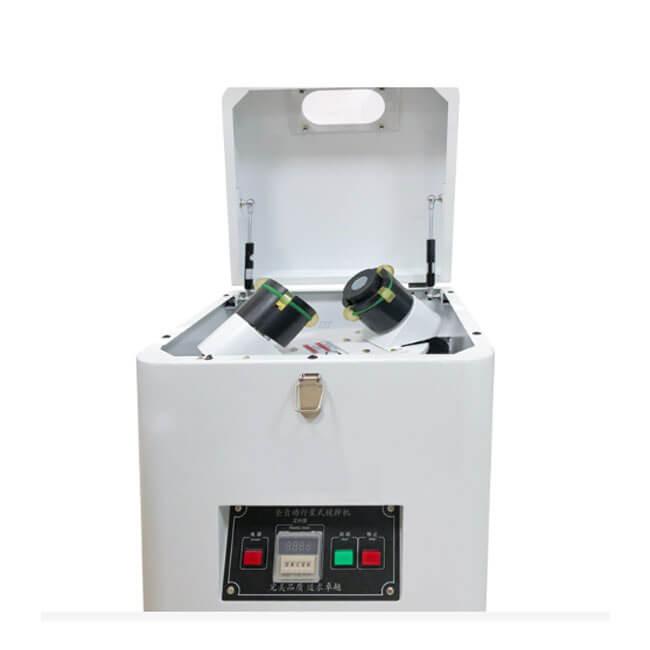

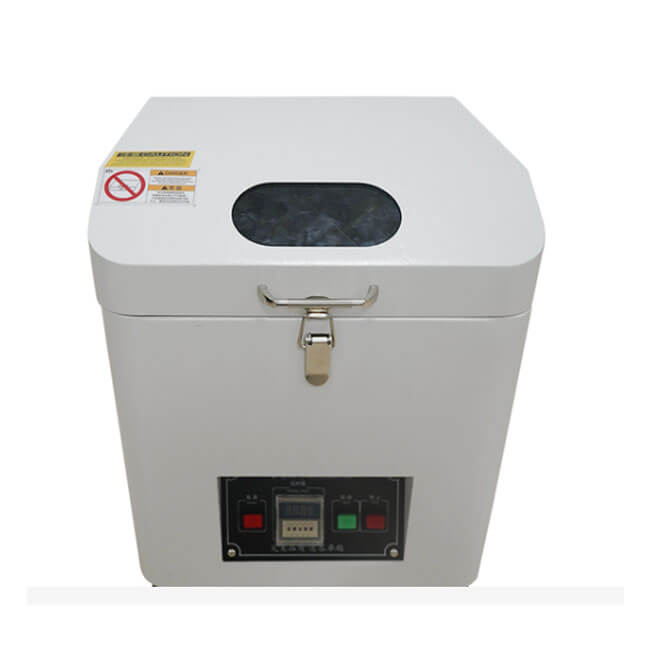

Automatic Solder Paste Mixer

The solder paste mixer is a fully automatic way of mixing solder paste. The equipment’s internal motor rotates and turns, which is the mixing concept. The solder paste mixer has several advantages over manual mixing, including the ability to arbitrarily regulate the direction and duration of stirring as well as the unchanging mixing speed.

Function:

Features:

1、Driven by high speed motor, fast speed and large torque;
2、Timer control, can set the mixing time;
3、Fully enclosed construction to ensure operator safety;
4、Adapt to the standard 500g solder paste bottles of various brands; stir 2 bottles in parallel;
5、The solder paste bottle does not need to be opened during the stirring process. stirred period about for 1-3 minutes.
6, Drive by electricity power only, no need air or other supply.
7、Mixing principle is on the basis of Motor rotation and revolution mode of agitation, no need to defrost the paste. Need to recovery the paste in short time, then the solder can be used after stirring well and deforming.
8、Process：Put in solder paste→Put the adapter on the other side→Close the lid and make sure there are no foreign objects inside the machine→Set the time→start →Automatic shutdown - take out.

Specification:

Model	WIT-SPM500（Regular）
Dimension(mm)	400×400×480(mm)
Solder paste Can compatible	DIAΦ60*H80 (suitable for general 500 g solder cream bottle)
Remove air bubbles time	0-99H
Revolution speed	600RPM/Min
Rotation speed	350RPM/Min
Power supply	1P AC220V 50/60Hz
Control mode	Timer + button switch
Operational capability	2tanks*0-500G
Mixing angle	45°
Weight	Approx.48Kg
