LCR Function of AUTO SPLICING Machine

Tape splicing system：±0.01
Conveyor system：930±15
Measurement range：L：0μH-1000H，C：0pF-20mF，R：0Ω-20MΩ
Measurement accuracy：±0.05%

BASIC INFO

LCR Function of AUTO SPLICING Machine

The automation of the SMT industry continues to evolve. Today the topic of managing operations systematically and integrating traceability information to the MES (Manufacturing Execution System) has become crucial in achieving higher productivity within today's SMT factories. L-4 Automatic Splicing Machine has been developed as a solution to this challenge. The L-3 helps to improve outgoing quality, enhance management via MES, and reduce operating cost.

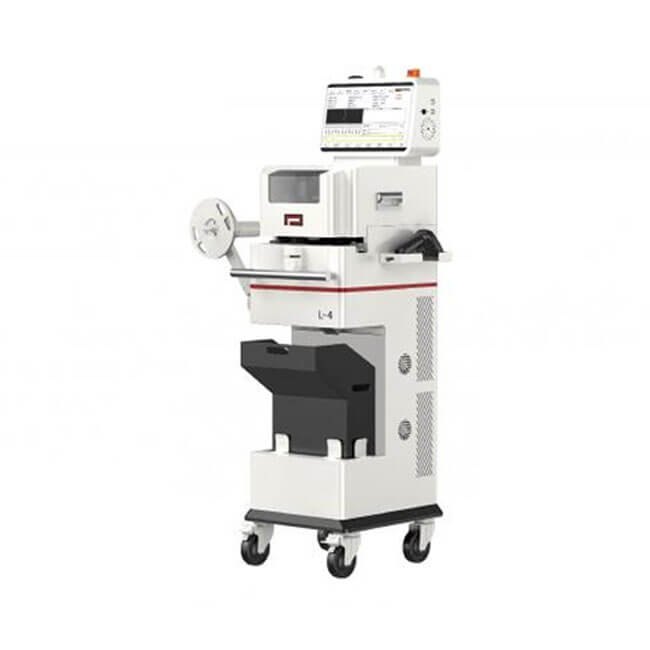

L-4 Automatic SMT splicing Machine

All SMT processes has been evolving through the years except the component reel splicing process. The question of improving efficiency, higher quality splices, zero wrong component splices have not been fully addressed and often ignore.

highly acclaimed L-4 intelligent splicing machine can perfectly meet all the requirement! It does not just satisfy customers MES integration function, but also easy to operate with high accuracy, stability and reliable characteristics. L4 has extremely short splicing cycle time, excellent LCR verification and very high FPY that works had in hand with any brand placement machine feeders that make the L-4 undoubtedly a must-have intelligent tool for today's SMT electronics manufacturing industry

● Support 8mm component tape width

● Support component tape thickness from 0.25-1.25mm

● Support deep pocket up to 2.5mm

● Excellent FPY up to 98%

● Standard with intelligent vision system

● Optional LCR verification for Capacitors and Resistors

● Independent X/Y/Z axis design for LCR verification

● Auto adjust LCR measurement probe for components size from 01005”

● Auto empty pocket detection with pre-cut stations and component pitch verification

● Continuous operation for up to 12-16 hours once fully charged

● MES integration with connectivity via Wi-Fi or direct Network port

TECHNICAL SPECIFICATIONS

Tape splicing system	X axis Repeatability（mm）	±0.01
	Y axis Repeatability（mm）	±0.02
	Positioning Accuracy of tape（mm）	±0.2
Information of component tape	Component tape width（mm）	8
	Component pitch（mm）	2/4
	Component pocket width max.（mm）	4.1
	Component tape thickness（mm）	Paper 0.25~1.25, Embossed tape 0.25~2.5
Conveyor system	Conveyor height（mm）	930±15
Rewinding device	rewinding arm	Standard one rewinding arm , optional Two rewinding arms
	Reel Size（mm）	Max.Ø380，Optional Ø500
	Max. load（kg）	Max.20
Decoded mode	Barcode camera attach on rewinding arm	Optional
Decoded mode
Splicing Rate	Cycle Time (sec)	≤7S（not including LCR test time and manual feeding time）
Splicing capacity	Splicing FPY	98%
	Splicing gap（mm）	0.1±25%
	Component tape length min.（mm）	140
Software contro	Automatic component pitch identification	Standard
	Component size comparison	Standard
	BOM import wizard	Standard
	OCR	Optional
LCR	Measurement accuracy	±0.05%
	Measurement range	L：0μH-1000H，C：0pF-20mF，R：0Ω-20MΩ
	Measurement method	Two-sided measurement value
	Test pass rate	95%（01005 Component）
Electricity	Power supply mode	24V DC 50Ah Lithium battery
	Battery time (when fully charged)（h）	12-16
	Power（W）	Max.120
Facilities Requirements	Weight（Kg）	87
Facilities Requirements	Reference Dimension（mm）	540(W) × 517(L) × 1455(H)
Other configurations are optional	MES customization, Barcode printer, Component reels stop function, Rotational speed sensor function, Fool-proofing function for rewinding arm,Laser height measurement function,Auto return device, Direct power supply, Wireless charging, Motion platform, Heavy motion platform.
