Online PCBA Cleaning Machine QT-6300

Belt transmission speed :100~150cm/min
Washing fluid tank capacity:120L
DI water usage:400~800L/H
Resistivity test range:0~18MΩ

BASIC INFO

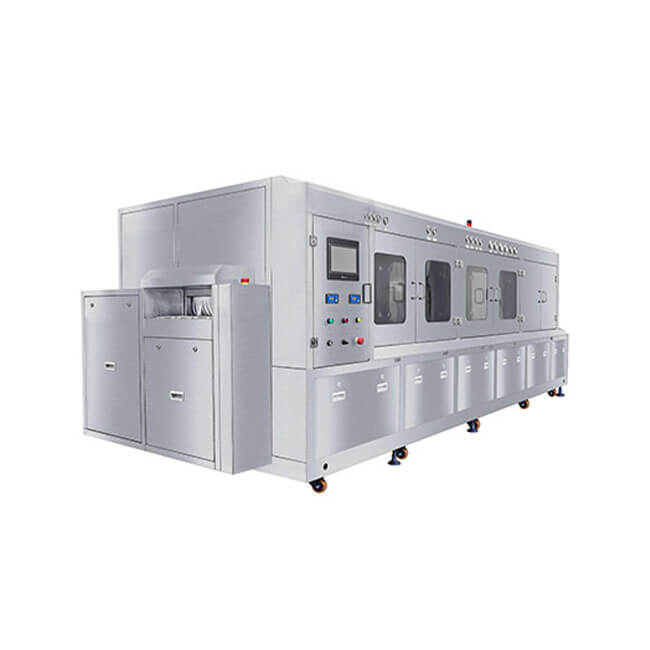

Online PCBA Cleaning Machine QT-6300

QT-6300 is an online, all-in-one, fully automatic PCBA cleaner. It is used to clean rosin-free flux, water-soluble flux, solder paste and other organic and inorganic contaminants left on PCBA surface after SMT and THT plug-in process welding. Widely used in automotive electronics, military, aviation, aerospace, medical, LED, intelligent instrument and other industries, suitable for mass PCBA centralized cleaning, taking into account the cleaning efficiency and cleaning effect.

Machine Features:

1, on-line, mass PCBA cleaning system.

2, large flow cleaning method, effectively remove PCBA welding pad, product surface flux and other organic and inorganic pollutants.

3, pre-cleaning, cleaning, chemical isolation, pre-rinsing, rinsing, finally spray rinsing, air cutting, infrared hot air drying process in order to complete.

4. Automatic addition and discharge of cleaning fluid; The DI water is automatically replenished in the backward and forward overflow mode to update the DI water.

5, up and down spray cleaning method, cleaning fluid, DI water pressure can be adjusted.

6, chemical liquid large flow and high pressure cleaning, can be fully penetrated into the bottom clearance of BGA, CSP, cleaning thoroughly.

7, multiple spray rod, a variety of nozzle configuration, suitable for different micro-spacing, high precision PCBA cleaning.

8, equipped with PH value detection, resistivity monitoring system, real-time detection of cleaning liquid and rinsing water quality.

9, wind knife wind cutting + ultra-long infrared hot air circulation drying system.

10, PLC control system, Chinese/English operation interface, the program is convenient to set, change, storage and call.

11, SUS304 stainless steel body, pipes and parts, durable, acid resistance, alkaline and other cleaning fluid.

12, cleaning liquid concentration detection is optional.

Specifications

ITEM	SPEC
Conveyor belt conveyor	500mm
Belt transmission speed	100~150cm/min
Belt conveying height	900±50mm
PCBA transmission direction	L-R
PCBA maximum width	500mm
PCBA maximum height	100mm
Washing fluid tank capacity	120L
Rinse tank capacity	60L
Washing fluid heating	RT~80℃
Rinse water heating	RT~60℃
Drying heating	RT~100℃
DI water usage	400~800L/H
Displacement	36m³/H
Control method	PLC
Power/air source	380VAC，3P,50/60HZ，110KW/0.5Mpa，200L/Min
Resistivity test range	0~18MΩ
Machine dimension	L5200W1650H1650mm
Machine weight	3000KG
