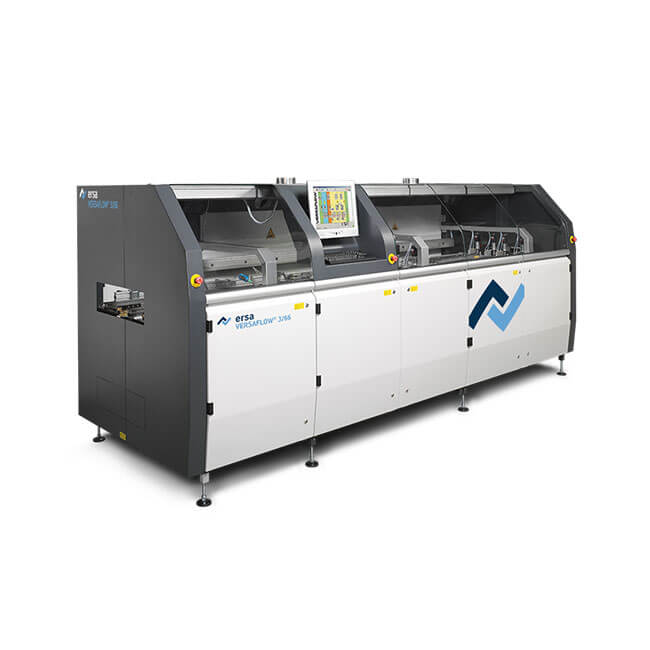

ERSA VERSAFLOW 3/66 Selective Soldering Machine
Modularity for highly flexible selective soldering of XL boards
Tech-Highlights VERSAFLOW 3/66
Highest throughput in the entire selective soldering market
Most sold selective machine platfoem worldwide
Safe process control with monitoring of all relevant parameters
Full modularity - suitable for every customer requiremen
Technical Data
VERSAFLOW 3/66
Dimensions
|
Length: 2.950 mm Width: approx. 1.900 mm |
Height: approx. 1.650 mm |
Conveyor support
|
Pin chain transport or roller transport PCB width: 63,5-610 mm PCB length: 127-610 mm |
Maximum PCB build-up at the top up to 120 mm Maximum PCB build-up at the bottom up to 60 mm (30 mm with z-variable modules) Maximum PCB weight: 5 kg (optional 15 kg) |
Flux module / Preheat module / Solder module
|
Fluxer: Drop-Jet in different sizes Preheater: IR radiator heating, convection or combination of IR and convection |

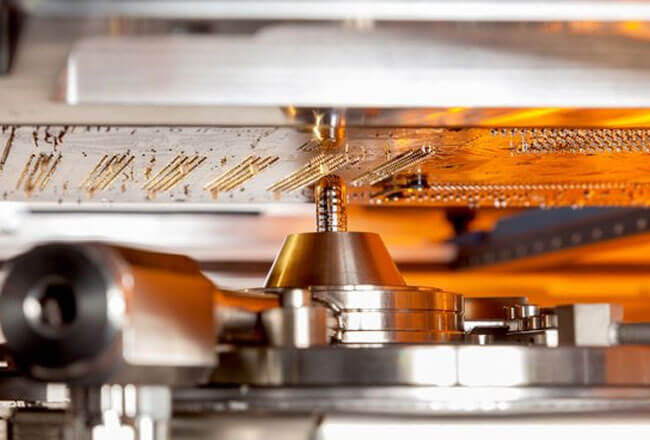

Soldering module: Electromagnetic solder pot 3 module with up to 6 pots, solder volume 13 kg/pot |
