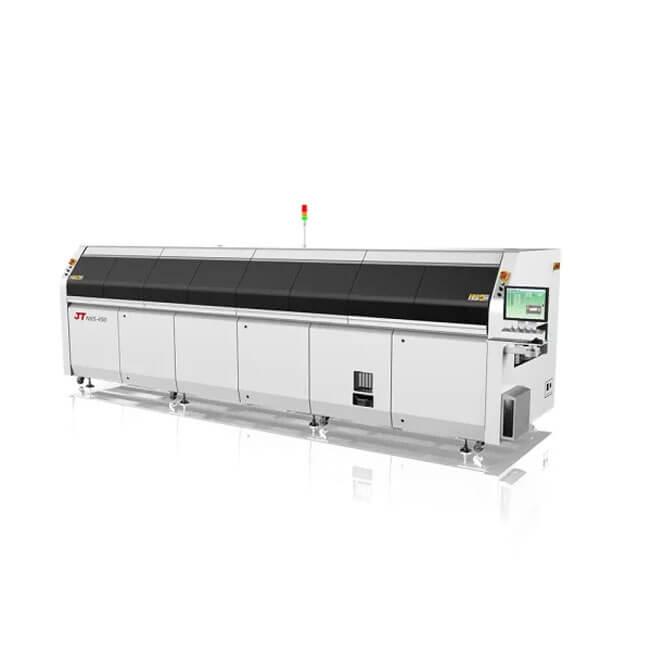

JT NXS-450 NXS-610 Wave Soldering Machine
Full-Tunnel Entire Nitrogen Wave Soldering System
● Nitrogen Closed-loop Control:
Real-time of nitrogen concentration, PID closed-loop adjust nitrogen flow to achieve the stable PPM value and save the nitrogen consumption
● Increase Solder Stability:
By nitrogen protecting in order to improve the wetting of wave infiltration and enhance solder penetration rate to make sure the stability of quality.
● Reduce Solder Defect:
The tunnel-based entire nitrogen wave soldering can reduce solder defect and improve production efficiency with less oxygen content.
● Save Cost:
The closed preheating environment can reduce the power and the production of solder dross.
Description
| MODEL | NXS-450 | |
| Wave Soldering Outside Dimension(L*W*H) | 5920×1620×1735mm | |
| Power Supply | 3P5W 380V AC 50/60Hz 160A （option: 3P5W 220V AC 50/60Hz 130A） | |
| Power demand | 75KW (Total Power * 1.5 Safety Factor) Hot Air | |
| Air | 0.5Mpa-0.8Mpa Air | |
| Total power | 60KW | |
| Operating power | 10-13KW | |
| Control mode | PC＋PLC | |
| Spray system | ||
| Spray Flow | 10~100ml/min | |
| Spray Pressure | 0.25Mpa～0.4Mpa | |
| Preheating System | ||
| Preheat mode | Hot Air/ IR For Option | |
| Speed regulation mode | Inverter | N/A |
| Preheat zones number | 3+3 | Option:Upper + lower preheating（MAX 4+4PCS） |
| Preheat zone length | 1950mm | Option:2250mm |
| Preheat temperature | Room Temperature ～250℃ | |
| Preheating temperature control mode | PID+SSR | |
| Welding system | ||
| Working mode of tin furnace | Mechanical Pump | |
| Power of heating tube of tin furnace | 1.5KW*14 | |
| Tin furnace capacity | Lead-free ：About 550KG | |
| MAX temp of tin furnace | MAX: 300℃ | |
| Limit service temp | MAX: 280℃ | |
| Wave driving power | 0.75kw×2 Servo Motor | |
| Wave height control | Closed-loop Servo Speed Regulation | |
| Warming up time | About 150 min（Set：250℃） | |
| Wave peak select | Spoiler + Flat or Spoiler + Spoiler (free choice) | |
| Wave height | 0-15mm | |
| PCB Conveyor System | ||
| PCB transmission speed | 0~1800mm/min | |
| Width range of PCB | 50-450mm/50-610mm | |
| PCB board length range | 120-600mm | |
| PCB board component height | Top 150mm | Bottom 25mm customized |
| PCB inlet transport height | 850±20mm | |
| Transport guide rail inclination | Factory ：5.5°±0.2°Not Adjustable | |
| Transmission motor power | 90w×3 Servo Motor | |
| Coveyor mode | Fragmnet Conveyor: Chain→Fingers (V+L/full V/full L)→Chain | |
| Speed regulation mode | Closed-loop Servo Speed Regulation | |
| Gas Parameters | ||
| pressure nitrogen source | 0.5～0.8MPa | |
| oxygen nitrogen source | ≤10PPM | |
| Nitrogen flowmeter | 7pcs | |
| Others | ||
| Cooling fan power | 380V AC 750W | |
| Exhaust pipe dimeter | Φ200mm | |
| MODEL | NXS-610 | |
| Wave Soldering Outside Dimension(L*W*H) | 5920×1795×1735mm | |
| Power Supply | 3P5W 380V AC 50/60Hz 160A （option: 3P5W 220V AC 50/60Hz 130A） | |
| Power demand | 85KW (Total Power * 1.5 Safety Factor) Hot Air | |
| Air | 0.5Mpa-0.8Mpa Air | |
| Total power | 90KW | |
| Operating power | 13-16KW | |
| Control mode | PC＋PLC | |
| Spray system | ||
| Spray Flow | 10~100ml/min | |
| Spray Pressure | 0.25Mpa～0.4Mpa | |
| Preheating System | ||
| Preheat mode | Hot Air/ IR For Option | |
| Speed regulation mode | Inverter | N/A |
| Preheat zones number | 3+3 | Option:Upper + lower preheating（MAX 4+4PCS） |
| Preheat zone length | 1950mm | Option:2250mm |
| Preheat temperature | Room Temperature ～250℃ | |
| Preheating temperature control mode | PID+SSR | |
| Welding system | ||
| Working mode of tin furnace | Mechanical Pump | |
| Power of heating tube of tin furnace | 1.5KW*14 | |
| Tin furnace capacity | Lead-free ：About 780KG | |
| MAX temp of tin furnace | MAX: 300℃ | |
| Limit service temp | MAX: 280℃ | |
| Wave driving power | 1.0kw×2 Servo Motor | |
| Wave height control | Closed-loop Servo Speed Regulation | |
| Warming up time | About 150 min（Set：250℃） | |
| Wave peak select | Spoiler + Flat or Spoiler + Spoiler (free choice) | |
| Wave height | 0-15mm | |
| PCB Conveyor System | ||
| PCB transmission speed | 0~1800mm/min | |
| Width range of PCB | 50-450mm/50-610mm | |
| PCB board length range | 120-1000mm | |
| PCB board component height | Top 150mm | Bottom 25mm customized |
| PCB inlet transport height | 850±20mm | |
| Transport guide rail inclination | Factory：5.5°±0.2°Not Adjustable | |
| Transmission motor power | 90w×3 Servo Motor | |
| Coveyor mode | Fragmnet Conveyor: Chain→Fingers (V+L/full V/full L)→Chain | |
| Speed regulation mode | Closed-loop Servo Speed Regulation | |
| Gas Parameters | ||
| pressure nitrogen source | 0.5～0.8MPa | |
| oxygen nitrogen source | ≤10PPM | |
| Nitrogen flowmeter | 7pcs | |
| Others | ||
| Cooling fan power | 380VAC 750W | |
| Exhaust pipe dimeter | Φ200mm | |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
