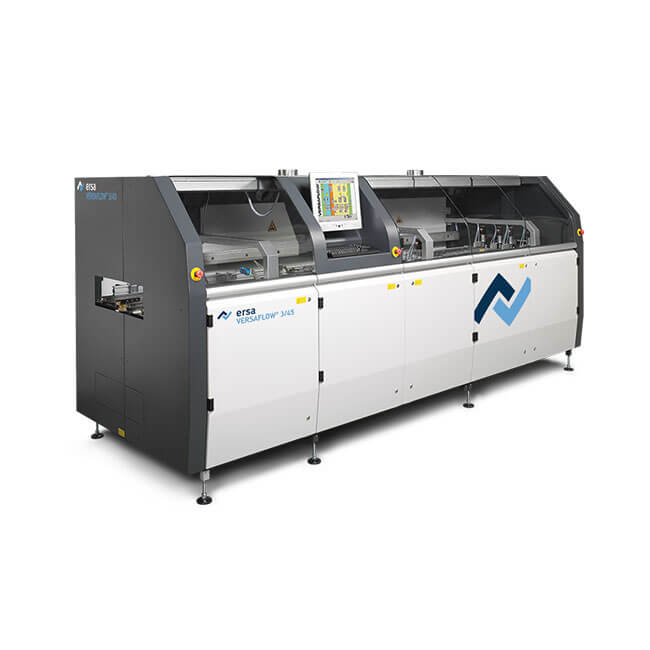

ERSA VERSAFLOW 3/45 Selective Soldering Machine
The first inline selective system with double transport
Tech-Highlights VERSAFLOW 3/45
Highest throughput in the entire selective soldering market
Most sold selective machine platform worldwide
Safe process control with monitoring of all relevant parameters
Full modularity - suitable for every customer requirement
Ersa selective soldering with the world´s most successful inline selective soldering machine VERSAFLOW 3/45
Technical Data Inline
Selective Soldering Machine
VERSAFLOW 3/45
Dimensions
|
Length: from 2,450 to 7,500 mm Width: approx. 1.750 mm |
Height: approx. 1.650 mm |
Conveyor support
|
Pin chain transport or roller transport PCB width: 63,5-508 mm (option 600 mm) PCB length: 127-508 mm (option 600 mm) |
Maximum PCB build-up at the top up to 120 mm Maximum PCB build-up at the bottom up to 60 mm (30 mm up to z-variable) Maximum PCB weight: 5 kg (optional 15 kg) |
Flux module / Preheat module / Solder module
|
Fluxer: Drop-Jet in different sizes Preheater: IR radiator heating, convection or combination of IR and convection |
Soldering module: Electromagnetic solder pot Mini-wave 13 kg with up to 6 pots Multi-wave soldering area up to 356 x 356 mm / 360 x 460 mm / 370 x 425 mm PCB size up to 406 x 508 mm |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
