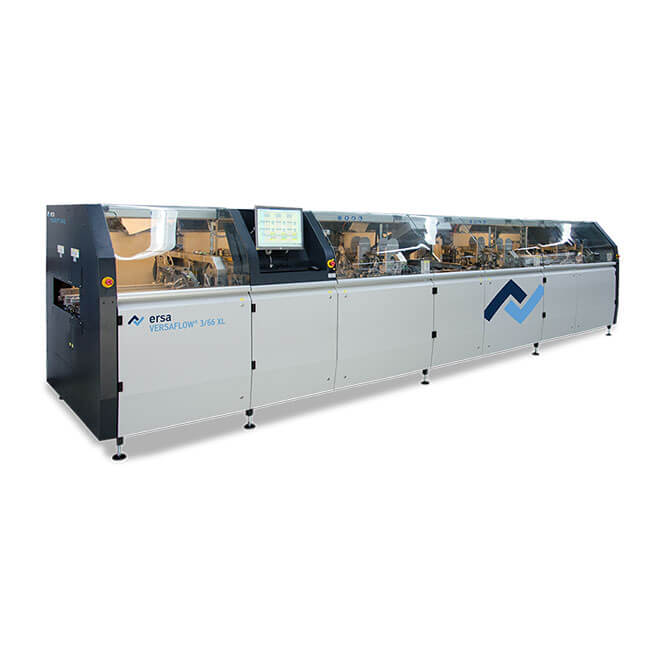

ERSA VERSAFLOW 3/66 XL Selective Soldering Machine
Modular machine platform for processing PCBs with max. length of 3,000 mm
Tech-Highlights VERSAFLOW 3/66 XL
Highest throughput in the entire selective soldering market
Most sold selective machine platfoem worldwide
Safe process control with monitoring of all relevant parameters
Full modularity - suitable for every customer requirement
Technical Data
VERSAFLOW 3/66 XL
Dimensions
|
Length: 10.150 mm Width: approx. 1.900 mm |
Height: approx. 1.650 mm |
Conveyor support
|
Pin chain transport or roller transport PCB width: 100-610 mm PCB length: 150-3,000 mm |
Maximum PCB build-up at the top up to 120 mm Maximum PCB build-up at the bottom up to 60 mm Maximum PCB weight: 10 kg (optional 20 kg) |
Flux module / Preheat module / Solder module
|
Fluxer: Drop-Jet in different sizes Preheater: IR radiator heating, convection or combination of IR and convection |

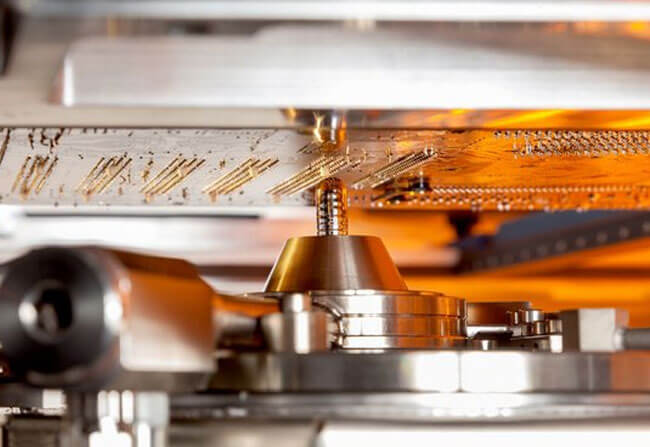

Soldering module: Electromagnetic solder pot 1 module with up to 2 pots, solder volume 13 kg/pot |
