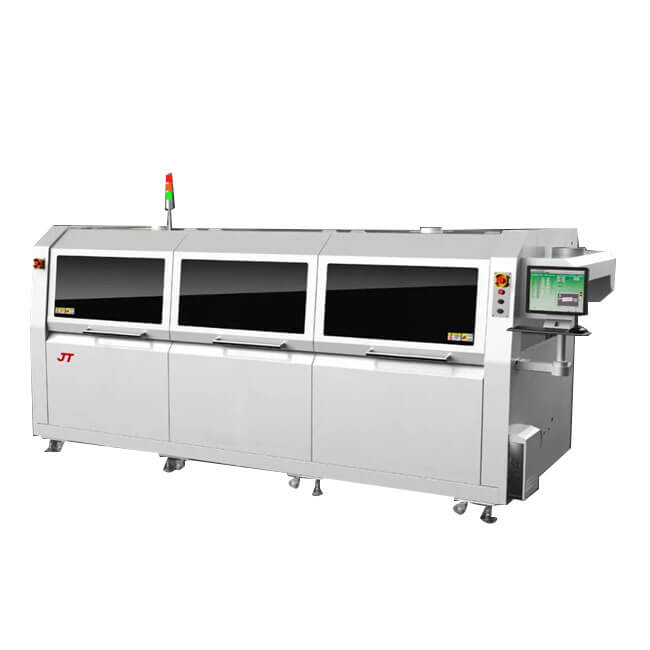

JT ATS-350 ATS-450 Wave Soldering Machine

ATS Series Lead-Free Dual Wave Soldering System

● Closed loop with inverter control system to keep the stability and accuracy of the conveyor speed
● The assistant pressure device nearby the entrance to prevent the PCB from slipping
● Spray nozzle driving by stepping motor is to make sure the coating uniformly
● Module design of spray fluxer system and the design of nozzle always be perpendicular to rail,which can make sure the flux penetrates PCB easily
● Forced air cooling system to attain the cold-down slope as per lead-free required
● Conveyor angle is adjustable by manual
● Standard with hot air heating for preheating zones
● Module design suitable for SMT & THT component soldering
● Exhaust adopt centrifugal fan with double filters to avoid any flux drop to PCB
● The level of flux container is controlled by non-contact sensors to ensure nocorrosion and longer life
● Flux spray nozzle with self-cleaning system
● Standard with air knives to prevent flux expand to preheat zone
● Wave height control adopted with inverter, it can be set individually
● 1/4HP high power mechanical pump to meet the wave as high as 15mm
● Light & Sound alarm, emergency stop and over-load protection
