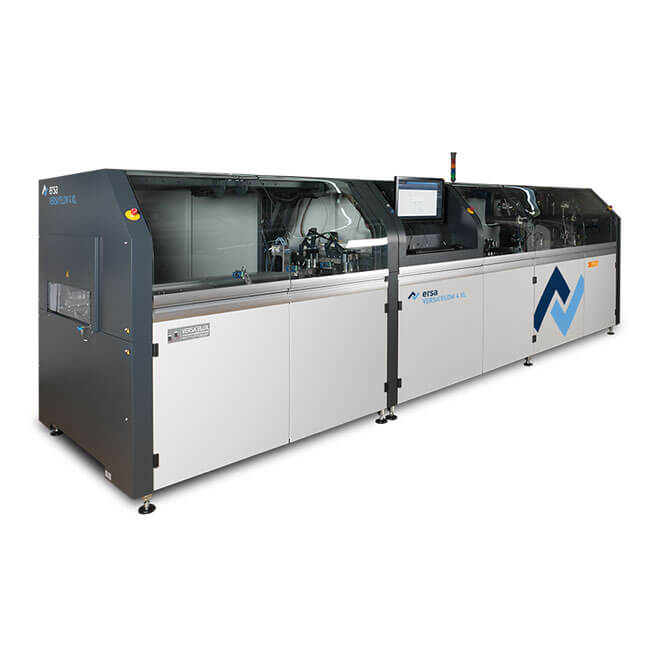

ERSA VERSAFLOW 4 XL Selective Soldering Machine
Revolutionary variety and flexibility in selective soldering
Tech-Highlights VERSAFLOW 4 XL
Intelligent high-end selective soldering machine for inline production concepts
Full modularity - suitable for every customer requirement
Tripling of throughput with highest flexibility
Intuitive operating concept
Highest process reliability through proven control systems
Technical Data
VERSAFLOW 4 XL
Dimensions
|
Length: 4.700 mm Width: 1.800 mm |
Height: 1.600 mm |
Conveyor support
|
Roller conveyor PCB width: 50-610 mm |
PCB length: 127-508 mm, PCB weight: 15 kg (opt. 20 kg) |
Flux / Preheat / Solder Module
|
Fluxer: VERSAFLUX module with 2 independent axis systems Precision spray flux system Number of spray heads/axis: up to 2 |
Solder module: VERSAFLEX soldering module with 2 independent axis systems Mini-wave, approx. 13 kg |
|
Preheater: IR heater bottom (base), convection top (option) |
|
