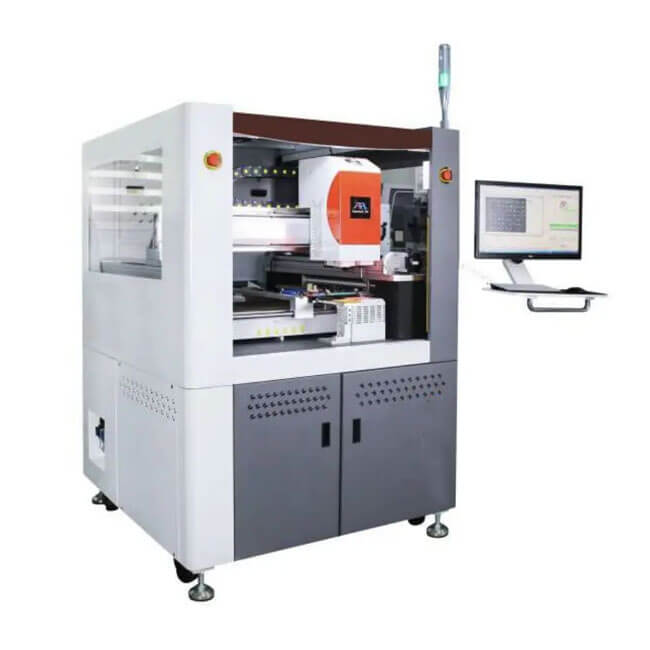

R8650C BGA Rework Station
R8650C is a fully automatic visual alignment BGA rework station, suitable for automatic visual placement of various chip o large PCB boards (such as 5G communication boards), automatic welding and automatic desoldering. It can be combined with SAP/ERP to realize the temperature curve analysis with S/N as retroactive condition.
Features:
Power Supply AC380V±10% 50/60Hz
Heater power Top heater 800W, bottom 800W, IR 5000W
Total power 21.25KW Upper temperature zone(1.45KW ) Power Lower temperature zone(2KW) Other power(1.8KW) Preheating temperature zone(16KW
PCB size 670x570mm(Max) ; 10x10mm(Min)
BGA Chip Size 100x100mm(Max) ; 1x1mm(Min)
IR Temp. Zone Size 645x524mm
Motion Control X/Y/Z
External Temp. Sensor 6 PCS
Control System Industrial PC+Servo motion control system
Display System 24" SD display
Alignment System SM pixels d1g1tal HD industrial camera+ 1.3M pixels Industrial camera with telecentric auto-correction alignment
Vacuum adsorption Full automatic
Alignment Accuracy ±0.0lmm
Temp. Control K·type thermocouple(closed-loop), intelligent temperature compensation system with accuracy up to ± 1° c
Feeding Device Semi-automatic
Positioning V-groove with universal fixture(shaped fixture can be customized)
Dimensions L 1235xW1215xH1850mm
Weight 660KG
Accessories Include:
PCB support fixture
BGA support frame
Nozzle
Vacuum Nozzle
