XC2000 Inline Component Counting machine

Operating Current Range：200 -700μA
Max Output Power：56W
Micro Focus Spot Size：30μm-40μm
Field of View：427mm×427mm

BASIC INFO

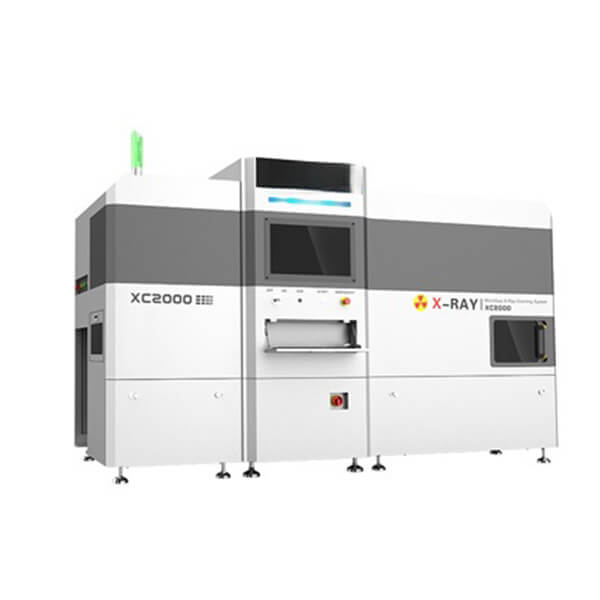

XC2000 Inline Component Counting machine

XC2000 is an inline automatic counting machine. It uses the X-Ray perspective principle and the independently developed algorithm software with AI function, which can quickly and accurately calculate the number of materials in the reel, it can also upload MES data and automatically print the material labels.

This X-Ray SMD component counter has the functions of automatic code scanning, labeling, and automatic sorting failure, and can automatically load and unload materials to improve work efficiency and save labor.

Product Features

1.With automatic loading/unloading function.

2.Compared with traditional counting/pointing machine, there is no need to unpack or transfer the reel.

3.Suitable for all types of chip components, SMD X-Ray counter above 01005.

4.Accuracy of counting reaches more than 99.99%.

5.Measurable reel diameter is 7-15 inches.

6.Innovative detection environment and algorithm with AI function.

7.With automatic sorting of defective products.

8.With automatic printing and attaching material labels.

9.Can realize the function of database storage and MES data upload.

Specification

X-Ray Tube Source Specification
Type	Sealed Micro-Focus X-Ray Tube
Voltage	80 KV
Operating Voltage Range	30-80KV
Operating Current Range	200 -700μA
Max Output Power	56W
Micro Focus Spot Size	30μm-40μm

Flat Panel Detector Specification
Type	TFT Industrial Dynamic FPD
Pixel Matrix	3072×3072
Field of View	427mm×427mm
Resolution	3.6Lp/mm
Frame（1×1)	6fps
A/D Conversion Bit	16bits

Dimensions	L3200mm×W1600mm×H2100mm
Input Power	220V 10A 50-60HZ
Max Sample Size	510mm×650mm
Control System	Industrial PC WIN7/ WIN10 64bits
Net Weight	Approx 2200KG
Radiation	＜1μSv/h
