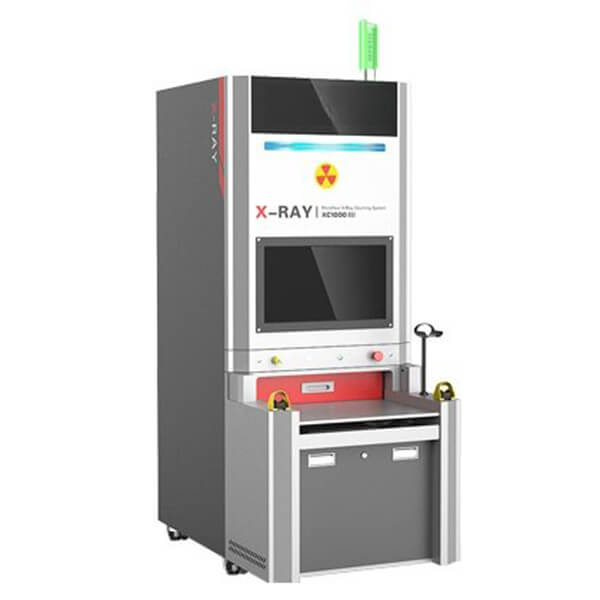

XC1000 Offline X-ray full-automatic counting machine
It uses X-Ray perspective principle and independently developed algorithm software with AI function, which can quickly and accurately calculate the number of materials in the material reel. This X-Ray chip counter also has MES Data upload and automatic printing of material labels. To achieve the function of improving work efficiency and saving manpower.
Product Features
1.Compared with traditional counting/pointing machine, there is no need to unpack or transfer the reel in the X-Ray reel counter.
2.Suitable for all types of chip components, SMD devices above 01005.
3.Accuracy of counting reaches more than 99.99%.
4.Measurable reel diameter is 7-15 inches.
5.Innovative detection environment and algorithm with AI function.
6.Realize automatic counting.
Specification
|
X-Ray Tube Source Specification |
|
|
Type |
Sealed Micro-Focus X-Ray Tube |
|
Voltage |
80 KV |
|
Operating Voltage Range |
30-80KV |
|
Operating Current Range |
200 -700μA |
|
Max Output Power |
56W |
|
Micro Focus Spot Size |
30μm-40μm |
|
|
|
|
Flat Panel Detector Specification |
|
|
Type |
TFT Industrial Dynamic FPD |
|
Pixel Matrix |
3072×3072 |
|
Field of View |
427mm×427mm |
|
Resolution |
3.6Lp/mm |
|
Frame（1×1) |
6fps |
|
A/D Conversion Bit |
16bits |
|
|
|
|
Dimensions |
L800mm×W1260mm×H1950mm |
|
Input Power |
220V 10A 50-60HZ |
|
Max Sample Size |
450mm×450mm |
|
Control System |
Industrial PC WIN7/ WIN10 64bits |
|
Net Weight |
Approx 800KG |
|
Radiation |
＜1μSv/h |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
