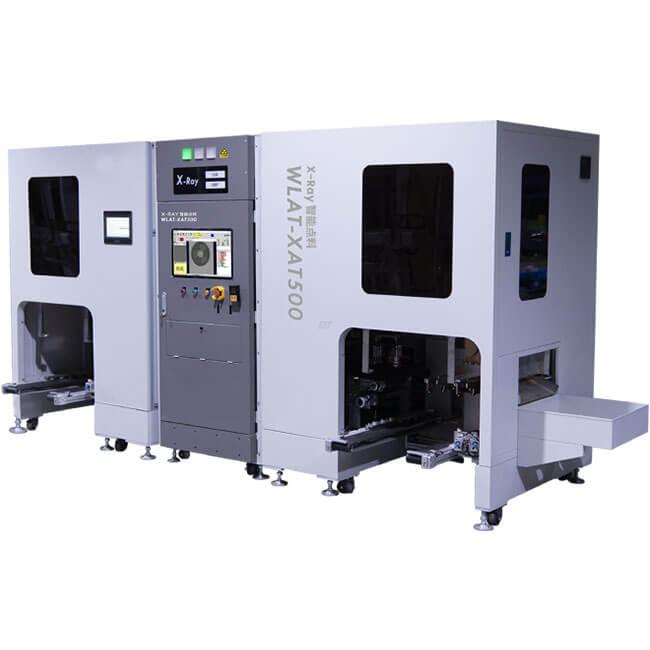

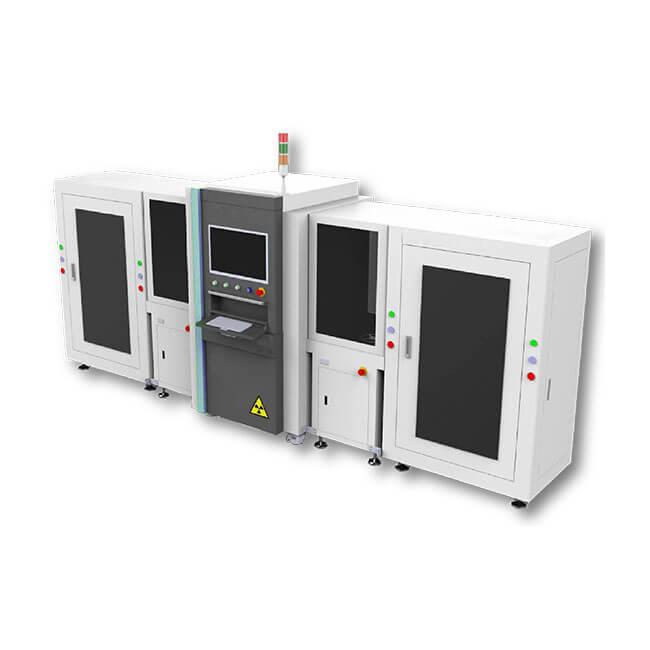

X-ray Automatic Material Counting Machine Max
Used in the electronic components industry, the average point accuracy of the tailing points of the SMD tray is 99.97% (the accuracy of materials of different specifications is different).
X-ray Automatic Material Counting Machine Max

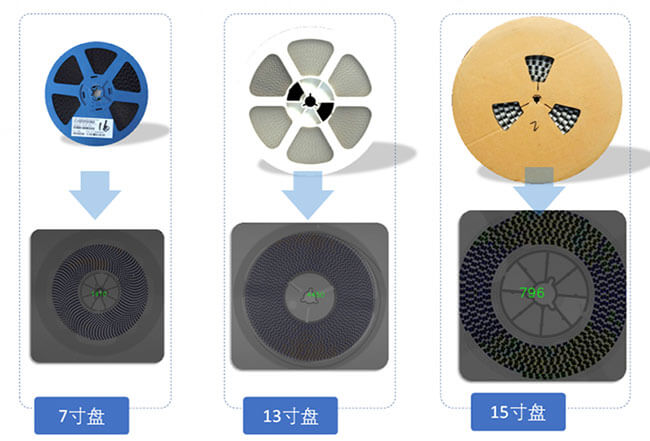

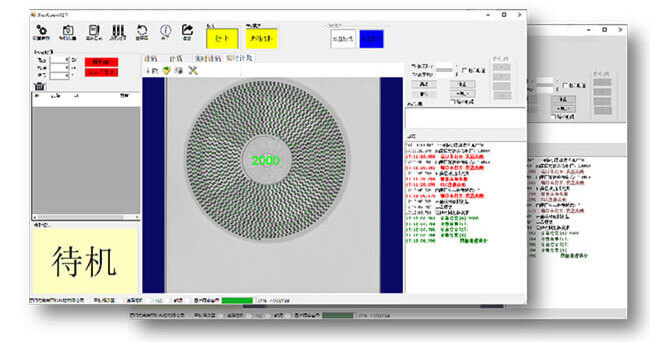

Can calculate 7-18 inches of materials, using X-ray imaging technology· Detect production materials and obtain image information for quick counting.The point result is directly bound to the material R-ID, which can be uploaded tothe user system online· Or print the mantissa label offline. Ensure the accuracy of the number of materialsreturned to the warehouse, and manage the use and loss of materials in a lean manner.·The equipment is mainly used for fast counting of reel materials in the SMT industry,which can calculate 7-18 inch materials·Material types include all resistance-capacitance materials and IC materials·Using X-ray imaging technology to detect production materials and obtain imageinformation for rapid counting.·Product features: CCD code reading, X-ray, CCD composite, dual-station interchange
APPLICATION
Used in the electronic components industry, the average point accuracy of the tailing points of the SMD tray is 99.97% (the accuracy of materials of different specifications is different)
|
Installations |
Parameters |
|
Interface System |
The system can be interfaced with ary WMS, ERP, MES, etc. |
|
Compatible Materials |
Diameter. 7~17 inches or spreading material of the same size;Height: 5m m~90m m |
|
Efficiency/Accuracy |
300 tray/hour (7"SMD); 99.95% (min detectae 01005) |
|
X-Ray Configuration |
17"flat detector 139jim ;VJ ray source 80KV/ 100W |
|
power |
Power supply: AC220V(10A); Air pressure:0.5MPa clean compressed air(overseas users can customize accoding to the actua local power supply volage) |
|
Dimensions(L*W*H) |
2950*1400*1950 |
|
Load and Unload |
Load cache 120 trays; Upload cache 120 trays |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
