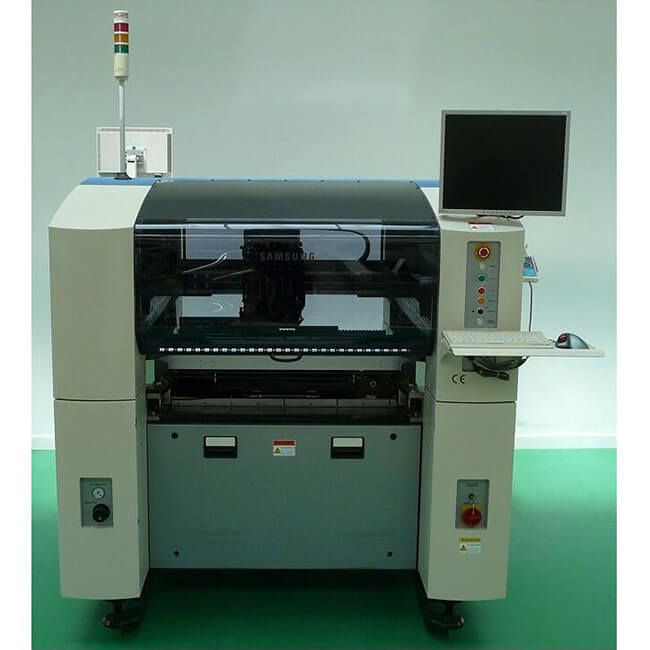

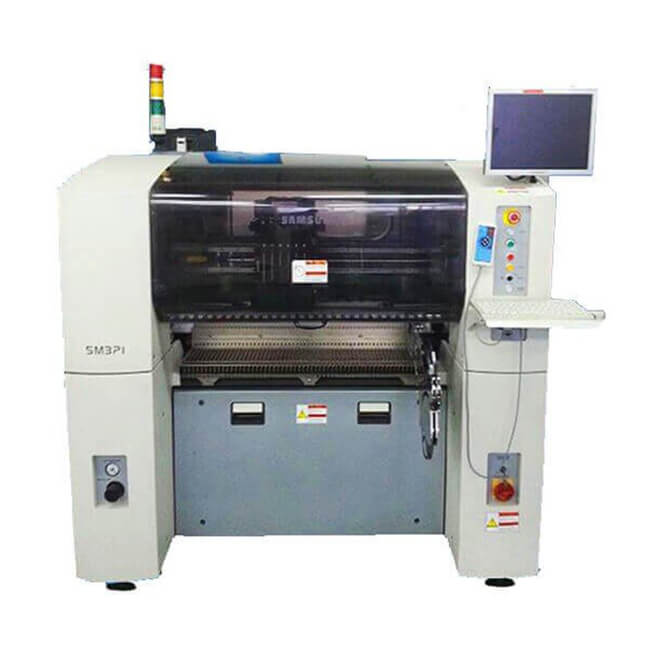

Samsung SM321 Pick and place machine

Placement Speed : 21,000 CPH
Applicable PCB : 460 * 400 * 4.2
Applicable Part : 0402mm Chip to 55mm
Accuracy: ± 50um (0402 @ 3ó)

BASIC INFO

Samsung SM321 Pick and place machine

Introduction of SAMSUNG SM321 Pick and Place Machine
Chip theoretical speed of 21,000CPH

Mounting range 0402mm Chip to 55mm
Placement accuracy plus or minus 0.03mm
PCB size 460 * 400 * 4.2 ~ 50 * 40 * 0.38
Maximum height H 15mm (fixed vision)
Narrow Pitch Mounting 0402 Chip: P 0.10mm
0603 Chip: P 0.15mm
The number of feeders Max.120EA
PCB size (mm)
(L * W * T) Standard 460 * 400 * 4.2 ~ 50 * 40 * 0.38 (weight 3kg)
Option 510 * 460 * 4.2
Special custom 610 * 510 * 4.2
Dimensions L1,650 * D1,680 * H1,530
Weight (KG) 1,800kg
Energy consumption 3phase
AC200 / 208/220/240/380/415
4.7kVA / (RMS 3kVA) 50 / 60Hz
Air consumption 5KG / cm2 260NI / min

Samsung SMT SM321S using Windows XP operating system, the best production speed of 52,000 CPH, Dual-arm Y-axis dual-servo drive system, arms a total of 16 placement head, high-speed flight image recognition system,Components to adapt to: 0402mm Chip to12mm, placement accuracy: ± 50μm, non-stop refueling, For the new SM feeding system, LED display feeder status, dual transmission system, can be put 84 8mm feeders,With front and back for the operation of the LCD display, automatic mouth change device.
