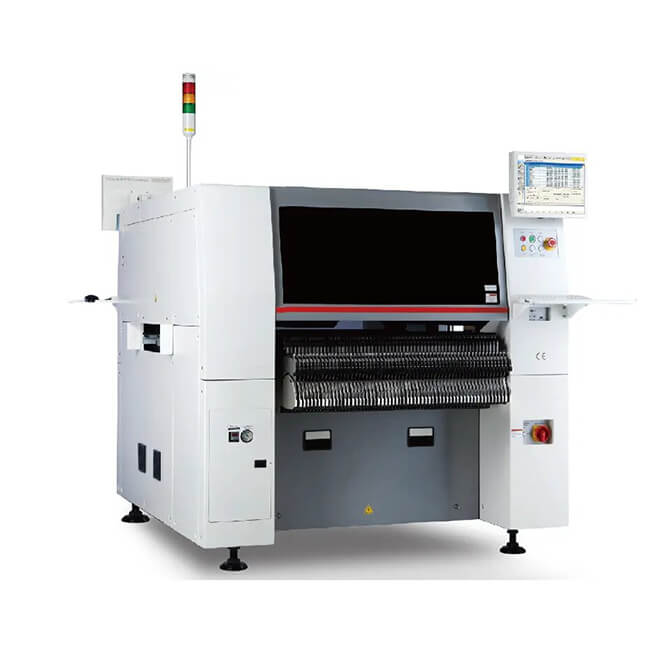

Samsung SM 481 Pick and place machine

Placement Speed : 38,000 CPH
Applicable PCB : 460(L) x 400(W)(Standard)
Applicable Part : 0402Chip ~ 42mm IC
Placement accuracy plus or minus 0.03mm

BASIC INFO

Samsung SM 481 Pick and place machine

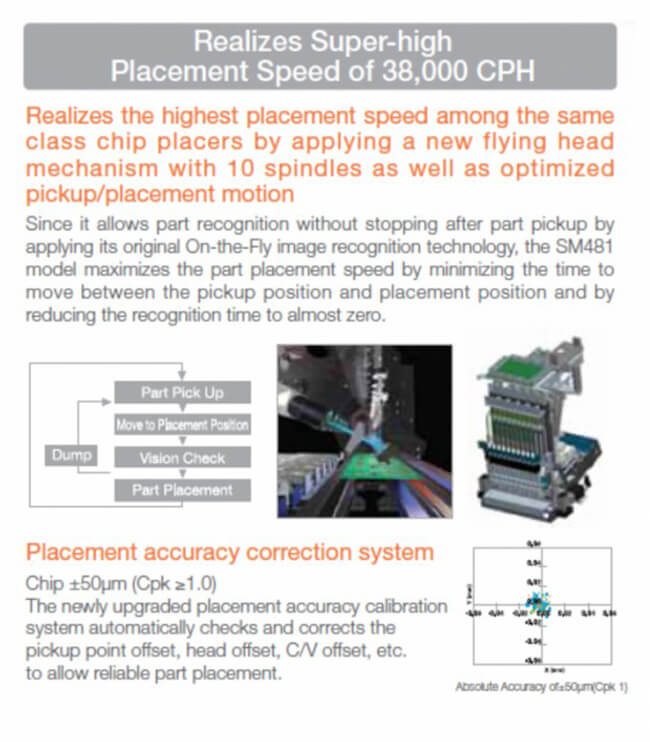

Samsung SM481 Advanced High-Speed Flexible Mounter is a general component placer whose vision system is reinforced based on the platform of the SM471 high-speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized a chip placement speed of 39,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.

In addition, it is applicable up to 0402 chips and □42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.

Features:

Samsung/Hanwha SM481 Chip Mounter SMT Pick and Place Machine,
SAMSUNG/ Hanwha Pick and Place Machine SM481
Samsung SM481 Chip Mounter
Chip theoretical speed 39,000CPH
Mounting range 0402Chip ~ 42mm IC
Placement accuracy plus or minus 0.03mm
PCB size 460 (L) * 400 (W)
Equipment size 1650 X 1680 X 1530MM
Power AC200 / 208/220/240/380
Equipment weight 1655KGSamsung SM481 Chip Mounter is based on the high-speed placement machine SM471 platform for the VISION system to strengthen the same level of equipment in the fastest equipment,
It is equipped with a cantilever 10 shaft, the new flight camera and the application of the best suction / placement action, so as to achieve the same level of products in the world as fast as 39,000CPH. The other can correspond to a minimum of 0402 components to the maximum 42mm IC, and increased practical productivity and mounting quality by applying electric feeders, which can be shared with SM pneumatic feeders
