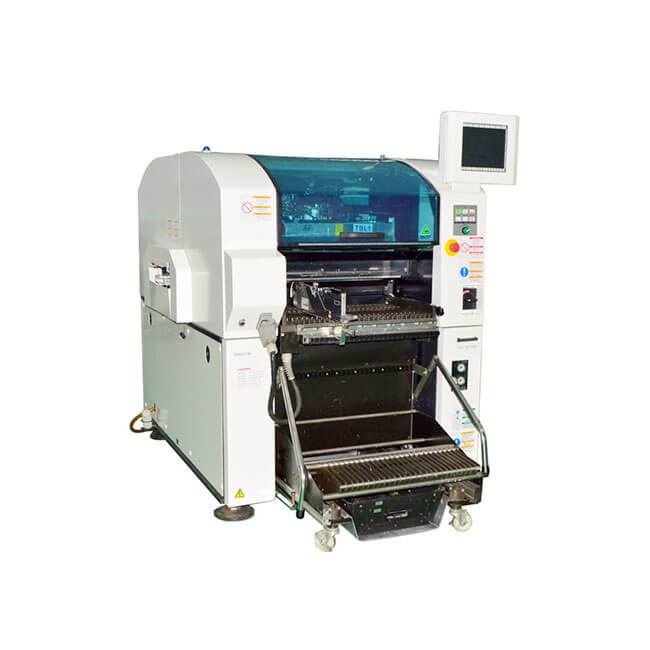

Panasonic CM402M Pick and place machine
Features & Benefits
Supports wide range of chips, from 0201 chips to 24mm square components in high-speed mode and 0201 chips to 90mm X 100mm in multi-function mode
Up to 60,000 components per hour
216 feeder inputs (using 8mm dual)
Gang feeder exchange
Dual lane capability
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
Description
MODEL ID:
CM402-M pick and place machine
MODEL NUMBER:
KXF-4Y3C
PCB DIMENSIONS:
L 50 mm x W 50mm to L 330 mm × W 250 mm
HEAD TYPE:
Type A-2 (12/12 nozzles HIGH-SPEED) (OPTION)
Number of nozzles:
12 nozzles/head
Maximum speed:
0.052 s/chip (69,500 cph)
Placement accuracy:
±40um/chip
Component dimensions:
(01005")0402 chip to L 12mm x W12mm xT6.5mm
HEAD TYPE:
8+8 HIGH-SPEED (OPTION)
Number of nozzles:
8 nozzles/head
Maximum speed:
0.06 s/chip (60,000 cph)
Placement accuracy:
±50um/chip
Component dimensions:
0201 (0603) C, R to L 24 mm × W 24 mm
HEAD TYPE:
8+3 MULTI FUNCTION (OPTION)
Number of nozzles:
3 nozzles/head
Maximum speed:
0.21 s/QFP (17,140 cph)
Placement accuracy:
±0.035 mm/QFP
Component dimensions:
0402 (1005) C, R to L 100 mm × W 90 mm
PCB EXCHANGE TIME:
0.9 s (board length: up to 240 mm)
ELECTRIC SOURCE:
3-phase AC 200 V ±10 V / AC 400 V ±10 V, 2.5 kVA
PNEUMATIC SOURCE:
490 kPa, 150 L/min (standard, machine body only)
DIMENSIONS
W 2,350 mm x D 2,460 mm x H 1,430 mm
MASS
2,700 kg
