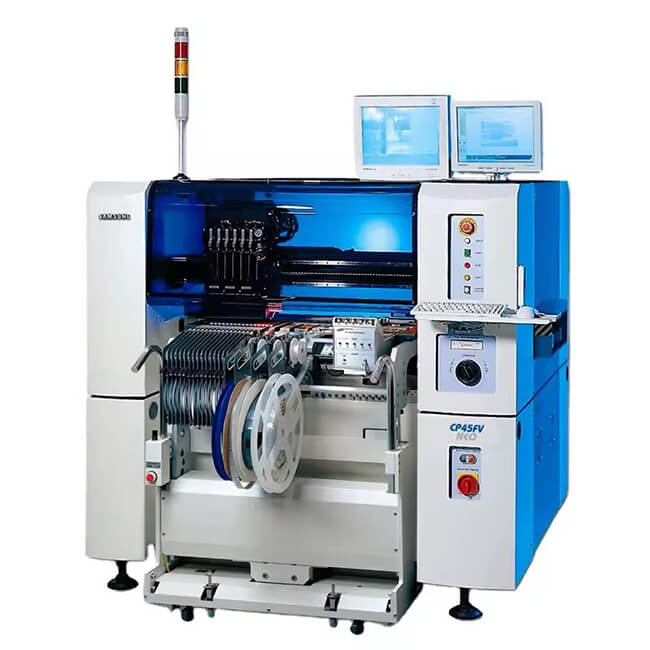

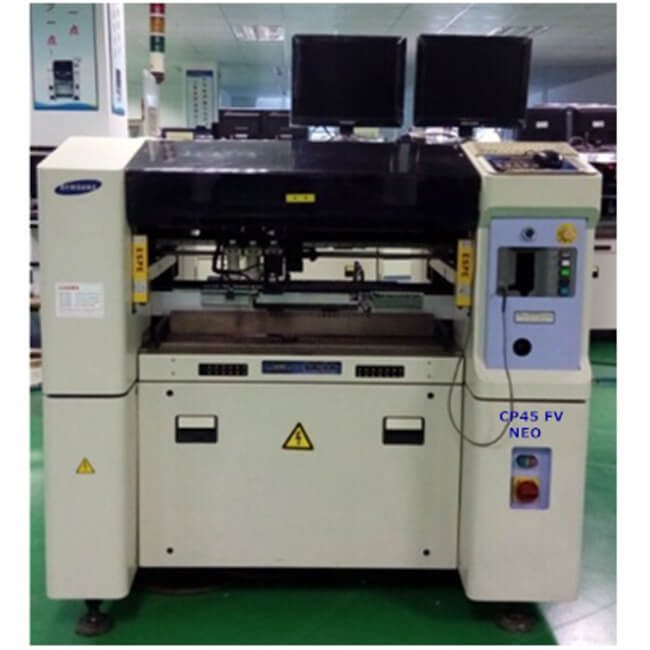

Samsung CP45FV Pick And Place Machine
6 heads
Servo system Servo motor drives X, Y axis-Z axis mobile drive system (Panasonic servo solution is the highlight of this machine)
Centering method CP45FV flight system

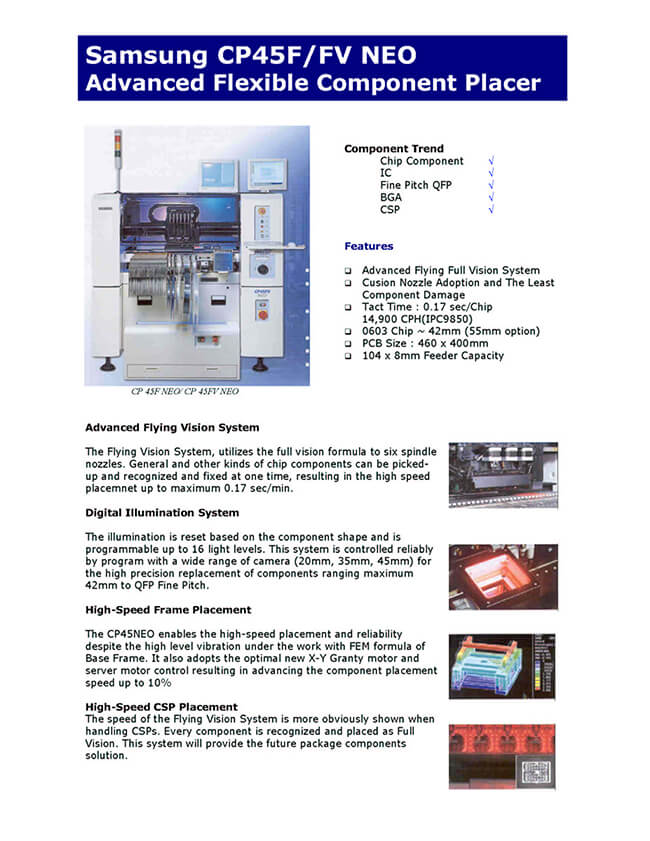

CP45FV Full Vision (Fly Vision + Stage Vision)
Substrate size Standard 50 × 30 × 0.38mm ～ 460 × 400 × 4.2mm option (CP45-L NEO)
50 × 100 × 0.38mm ～ 510 × 460 × 4.3mm
Placement speed CHIP 0.178 seconds / piece IPC9580 15900CPH (1608)
QFP 0.75 seconds / piece (flight centering) 1.6 seconds / piece (fixed vision system)
Number of feeders Belt feeders (104 optional)
Transport direction left-right (optional: right-left)
Placement accuracy CHIP 0603 (0201) Chip ± 0.08mm 1005Chip
QFP ± 0.1mm QFP ± 0.04mm
Original range Flight camera 1005 (0402) ～ □ 22mm IC, 0603 (0201) ～ □ 12mm (option)
Standard fixed camera (FOV35) ～ □ 32mm IC (Lead Pitch: 0.4mm)
Special fixed camera (FOV20) ～ □ 17mm IC (Lead Pitch: 0.3mm)
Special fixed camera (FOV45) ～ □ 42mm IC (Lead Pitch: 0.5mm)
Minimum. Lead Pitch (QFP) 0.3mm (with FOV20 Vision)
Minimum. Ball Pitch (BGA) 0.5mm (with FOV20 Vision)
Parts up to 15mm (9mm: with flying vision)
Power requirements: AC220V ～ 240V (50/60 Hz, 3Phase) RMS 2.6kVA (max: 6kVA)
Area / Dimension (mm) (x * y * h) 1650 × 1540 × 1420
Net weight about 1380kg
Feeder type 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm belt feeder, tray, vibration feeder, 20-moving multi-disc IC cabinet
Air consumption 5kg / cm³, 160Nl / min
Production specification
| Model | CP40 | CP45FV | CP45NEO |
| Manufacturing year | About 2000 | About 2004 | About 2006 |
| Placement heads | 3 | 6 | 6 |
| Mounting speed | 8000CPH | 12000CPH | 13000CPH |
| Spare parts | Sanyo motor | Sanyo motor | Panasonic motor |
| Feeder slots | 108 | 108 | 108 |
| Camera | vision camera+flying camera+mark camera | ||
| Power supply | 220V | ||
| Machine weight | 1600KG | ||
| Package dimension | 1650x1540x1420CM | ||
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
