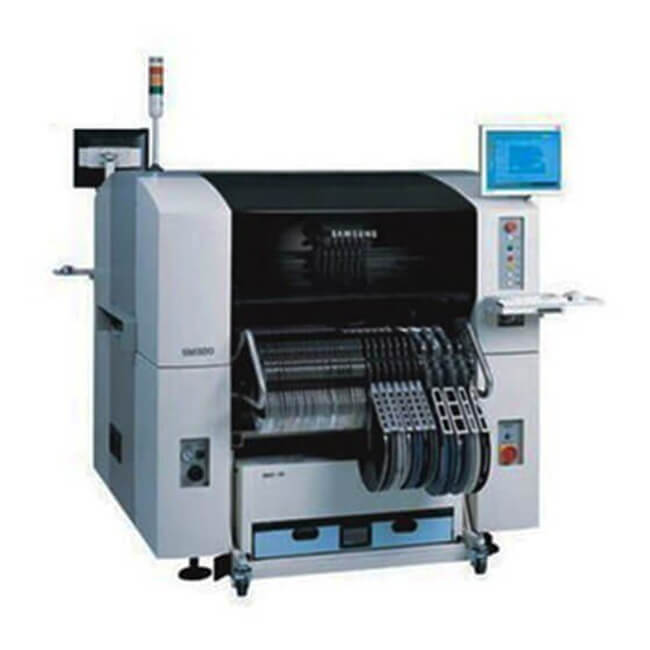

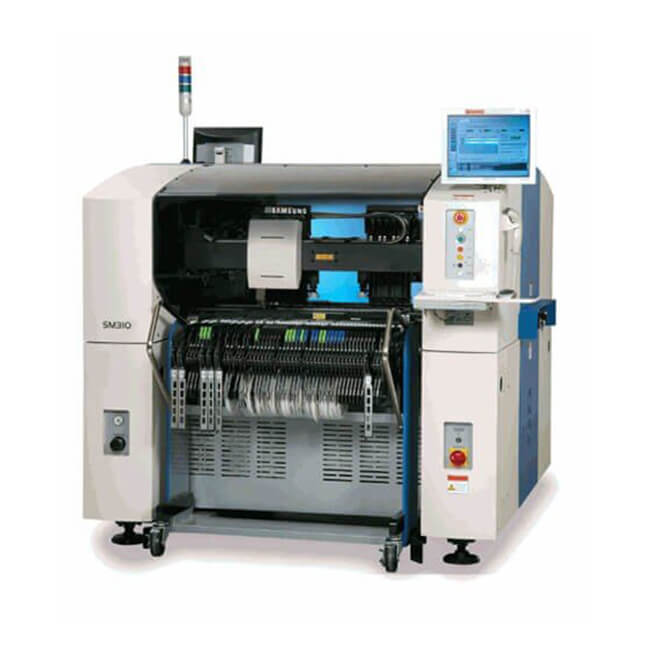

Samsung SM320 Pick And Place Machine

Placement Speed : 18500CPH
Applicable PCB : 510 * 460mm
Applicable Part : 1005～□22mmIC（Option 0603～□12mmIC/0402～□7mmIC）
Placement accuracy plus or minus 0.03mm

BASIC INFO

Samsung SM320 Pick And Place Machine

Chip theoretical speed ：18500CPH
Mounting range 0402mm Chip ~ □ 55mm IC
Placement accuracy plus or minus 0.03mm
PCB size 510 * 460-460 * 400mm
Equipment size 50 x 40 mm ~ 460 x 400mm

Component identification method

FLYING VISION + STAGE VISION
Mounting efficiency
Flight camera recognition system
CHIP 1608 18500 CPH (IPC9850)
SOP 15000 CPH (IPC9850)
QFP 5500 CPH (IPC9850)
Fixed camera vision system
1.4 SEC / QFP208 (TRAY SUPPLY STANDARD)
Components can be mounted range
FLYING VISION：1005 ~ □ 22mmIC (Option: 0603 ~ □ 12mmIC / 0402 ~ □ 7mmIC)

Mounting size：Standard stage vision (FOV 35) ~ □ 32mmIC

(Pitch 0.4mmQFP / 0.75mmBGA / ~ □ 55mm (MFOV))

Standard stage vision (FOV 45) ~ □ 42mmIC (Pitch 0.5mmQFP / 1.0mmBGA / ~ □ 55mm (MFOV))

Standard stage vision (FOV 20)~ □ 17mmIC (Pitch 0.3mmQFP / 0.5mmBGA)

Min.lead pitch (QFP) FOV10

0.3mm (QFP) /0.65mm (BGA)

Min.Ball pitch (BGA)
FOV15
0.5mm (QFP) /0.75mm (BGA)

FOV25
0.5mm (QFP) /0.75mm (BGA)
Max.Height
H12mm (Flying camera standard)
H15mm (Flying camera standard)
PCB board size
smallest size
50 (L) * 40 (W)

biggest size
460 (L) * 400 (W) / Option: 510 * 460, 640 * 510

PCB board thickness
0.38mm-4.2mm
Install feeder number

120ea / 112ea (docking cart)
Pressure and power consumption
power supply
AC220 / 220 / 240V (50 / 60HZ, 3 PHASE) (Option: 340/380 / 415V)

Air pressure
5kg / ㎡, 260 NI / MIN
Machine weight
1800KG
Machine size
1650 L * 1680 D * 1530 H.

Samsung SMT SM320 is a universal Mounter, can produce small pieces of CHIP materials,

but also can produce QFP material, suitable for small-scale production of independent products,

but also can be used in high-life turret Mounter Line for multi-functional chip processing.

Equipment, small size, light weight, does not account for the place.

Popular SM320. Highly Flexible, user friendly machine and highly reliable. Full vision with 6

placement heads, each with individual illumination allowing 6 totally different components to

be aligned on the fly. Upward looking camera allowing placement of components down to 0.4mm Lead pitch.

Features:
Full Vision Mounter 19k cph
Vintage 2005
Fully Overhauled & Re-Painted
Large PCB Size 610mm x 400mm
01005 ~ 22mm Square by Flying Vision Alignment (01005 Camera as option)
0.4mm Lead pitch @ 32mm Square using Vision Alignment
0.3mm Lead pitch camera included

BGA/CSP/uBGA by Vision Alignment

Feeder Capacity up to 120 x 8mm Feeders
IPC rated speed of 18'500cph (IPC9850 1608Chip)
Full set of nozzles to cover all component types
Large Component Library as Standard withmore than 1'800 component types
CAD Import facility as standard
Robust & Highly reliable Machine, fully supported by Elite 7 Installations Ltd.

Small Footprint for this Industrial Machine

Additional Features:

Takes Standard Easy to use SM Clamp Feeders, colour coded for ease of identification
Great addition to any Existing line to add capacity or fine pitch
Machine will be fully overhauled by our Experts
Warranty offered and fully supported by Elite 7 Installations Ltd.
Latest Software will be loaded

Fully tested & rebuilt
