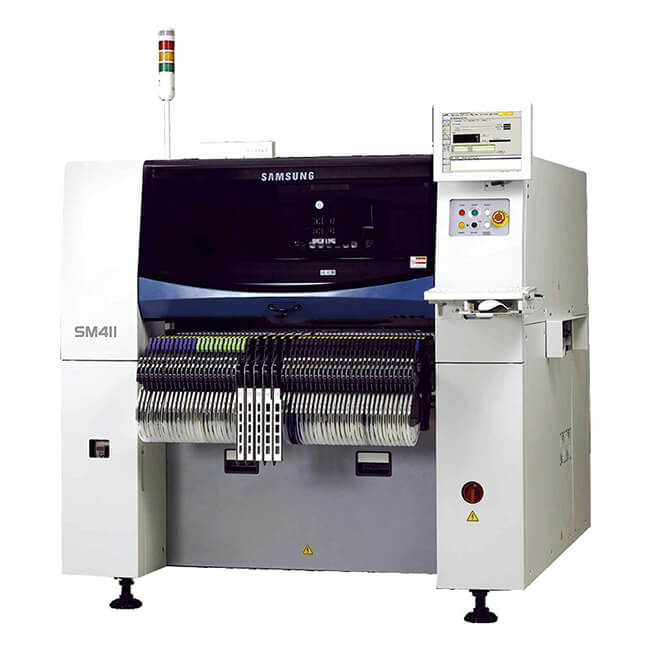

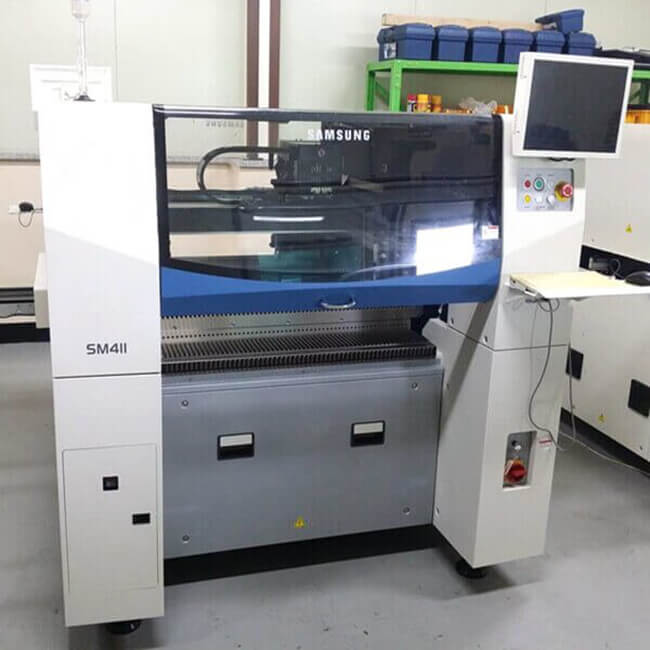

Samsung SM411 Pick And Place Machine
The SM411 is based on On Fly, a Samsung patented, the fastest-mount mid-speed machine with dual cantilever architecture for chip components 42,000 CPH, SOP components 30,000 CPH (IPC9850 standard) World's fastest in its class. This high-speed SMT mounting machine is also possible to implement high-precision mounting of 50-micron high-precision chip, which from the minimum size 0402 chip to the maximum of 14mm IC components.
Infinite Automation Co., Ltd. offers the best conditions for original and pre-owned SMT machines and equipment. Contact our Sales and Customer Support Team for inquiries.
Advantages:
- Parallel dual-track, PCB handling time 0 seconds
- Very low material loss rate: two ten thousandths
- Samsung's unique flight-centered recognition system (Fly Vision)
- Feeder component position automatic identification function
- Advanced flat wire structure
- Anti-static ESD nozzle
- New non-stop feeder
PM Manager Management Features:
- IPC9850 standard can mount 42,000CPH (Chip 1608)
- Dual Manipulator Drive System (12 heads)
- In-flight recognition system of images
- Y-axis dual servo motor drive system
- Bilateral standard feeder base
- Can be installed 120 8mm belt, feeders
- Reference point recognition camera
- Automatic nozzle replacement device
Features:
- Color LCD
- Double rail transfer system
- Rail width automatically adjusts
- PCB edge clamping device
- Feeding process tracking sensor
- Windows XP operating system
- Order and feed sorting automatic optimization program
- A standard nozzle
Specifications:
| Alignment Mode Flight Vision |
| Number of Spindles 6 Spindles x 2 Gantry |
| Mounting Speed Flight Vision Chip 1608 |
| Alignment Mode Flight Vision |
| Number of Spindles 6 Spindles x 2 Gantry |
| Mounting Speed Flight Vision Chip 1608 |
| SOP 42,000 CPH (IPC9850) |
| 30,000 CPH (IPC9850) |
| Mounting accuracy Chip ± 50? @ 3σ / Chip |
| (Based on the standard chips) |
| Narrow pitch mounting 0.1mm (0603) / 0.15mm (1005) |
| Component range 0603 ~ 14mm Chip, QFP, BGA |
| (Option: 0402 Please contact us. The more information will be available upon your request.) |
| Minimum pin pitch (QFP) |
| Minimum ball pitch (BGA) 0.5mm (QFP) / 0.65mm (BGA) |
| Height H = 12mm |
| Board size (mm) minimum 50 (L) x 40 (W) |
| 510 (L) x 460 (W) |
| (Single Lane Mode, 460 (L) Excess: No Buffer) |
| 460 (L) x 250 (W) (Dual Lane Mode) |
| 610 (L) x 460/250 (W) (Option) |
| PCB thickness 0.38mm ~ 4.2mm |
| Number of feeders 120ea / 112ea (feeder changer) |
| Energy consumption Power consumption AC200 / 208/220/240/380/415 V (50 / 60Hz, 3Phase) |
| Max. 5.0kVA |
| Air consumption 0.5 ~ 0.7MPa (5.1 ~ 7.1kgf / cm2), 300N? / Min |
| Weight 1,820kg |
|
Dimensions (mm) 1,650 (L) x 1,690 (D) x 1,535 (H) |
