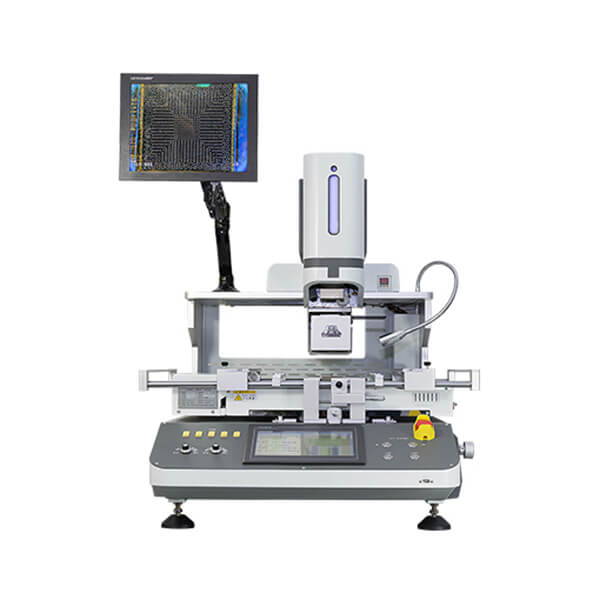

R730A Large Board BGA Rework Station
R730A large board BGA rework station is a kind of Semi-Automatic Soldering Machine. The machine has stable temperature control, a large HD touch screen, HD optical alignment and intelligent control as well as removable infrared temperature zone and other advantages.
1.Stable Temperature Control
Three temperature zones independently control, heated by convection hot air, the height of the bottom temperature zone is adjustable, the top temperature zone has a built-in vacuum suction nozzle for chip adsorption, with negative pressure monitoring and pressure protection device.
2.Large HD Touch Screen
Large HD touch screen operation with a variety of operation modes, real-time display, and edit temperature curve, each group of temperature curve can be set to 8 segments, can store 100 groups of temperature curve, can automatically analyze the curve, read through touch screen control.
3.Removable Infrared Temperature Zone
The IR preheating zone is heated by a carbon fiber infrared tube and protected by a high-temperature resistant microcrystalline panel. It can move left and right to facilitate maintenance of large and irregular PCBA.
4.HD Optical Alignment and Intelligent Control
Equipped with automatic feeding device, using Panasonic PLC and high-precision temperature control module, high-precision K-type thermocouple, dynamic PID multi-loop closed-loop control selective reflow soldering process, the accuracy can reach ± 1 ℃. Over temperature protection alarm function, software encryption and foolproof function.
Specification
|
Power Supply |
AC380V±10% 50/60HZ |
|
Power |
7.75KW(Max)，Top heater(1.45KW) Bottom heater (1.2KW)，IR Preheater (4.8KW), Other(0.3KW) |
|
PCB Size |
632*520mm(Max); 6*6mm(Min) |
|
BGA Chip Size |
80*80mm(Max); 3*3mm(Min) |
|
IR Heater Size |
570*435mm |
|
Temperature Sensor |
5 Pcs |
|
Operation Method |
10" HD touch panel (1080P 16:9) |
|
Control System |
Panasonic PLC + Temperature control module |
|
Display System |
15" HD industrial display ( 1080P 16:9) |
|
Alignment System |
2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator |
|
Vacuum Adsorption |
Automatic |
|
Alignment Accuracy |
±0.01mm |
|
Temperature Control |
K-type thermocouple closed-loop control with accuracy up to ±1℃ |
|
Feeding Device |
Yes |
|
Positioning |
V-groove with universal fixture |
|
Dimensions |
L1000*W835*H960mm |
|
Weight |
130.5KG |
