8mm/12mm/16mm/24mm Splicing Machine

Measurement accuracy：±0.05%
Measurement range：L：0μH-1000H，C：0pF-20mF，R：0Ω-20MΩ
Splicing gap（mm）：±0.1
Conveyor height（mm）：930±15

BASIC INFO

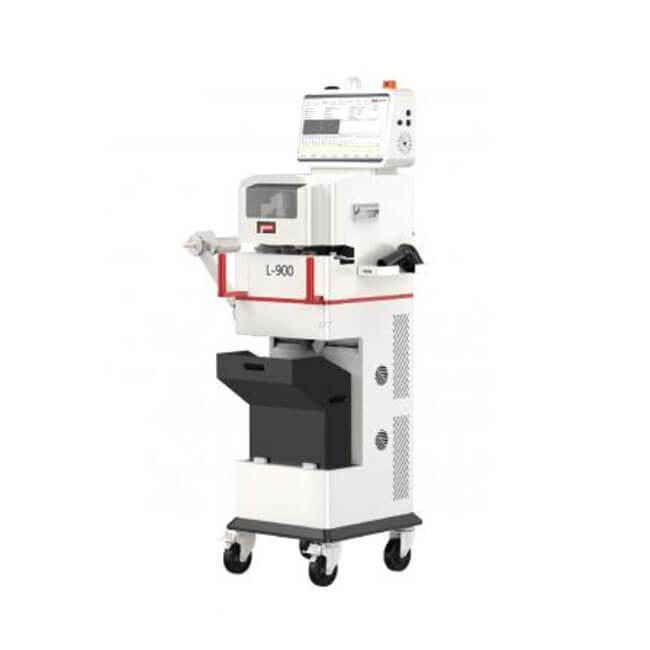

8mm/12mm/16mm/24mm Splicing Machine

Automatic splicing machine is an integral part of the modern MES (Manufacturing Execution System) in the SMT factory. Integration requires equipment and the MES to work seamlessly, and also requires the equipment to function with a high degree of automation. L-900 Automatic splicing machine not only can fulfill the above requirements, but also deliver unsurpassed splicing reliability to drive improved yields and utilization.

L-900 as SMT Industry pioneer in splicing system, not only can perfectly handle 8 ~ 24mm tape, but also has strong compatibility and the most powerful splicing passing ability. Deep pocket capability up to 9mm, strong splice tape adhesion strength of 5 kg and with the anti-torsion of 360 degrees. Therefore, L-900 is not only a intelligent splicing machine, but also a highly precise tool to improve SMT production efficiency

● Support 8, 12, 16, 24mm component tape width

● Support paper and embossed tape

● Support deep pocket up to 9mm

● Optional LCR verification for Capacitors and Resistors

● Independent X/Y/Z axis design for LCR verification

● Auto adjust LCR measurement probe for components size from 01005”

● Intelligent vision system

● Auto empty pocket detection with pre-cut stations and component pitch verification

● Excellent FPY up to 98%

● Support MES

TECHNICAL SPECIFICATIONS

Tape splicing system	X axis Repeatability（mm）	±0.01
	Y axis Repeatability（mm）	±0.01
	Positioning Accuracy of tape（mm）	±0.2
Information of component tape	Component tape width（mm）	8/12/16/24
	Component pitch（mm）	2/4/8/12/16/20/24
	Component pocket depth max.（mm）	9
	Component tape thickness（8mm tape）（mm）	0.25~1.25
Conveyor system	Conveyor height（mm）	930±15
Rewinding device	rewinding arm	Standard one rewinding arm , optional Two rewinding arms
	Reel Size（mm）	Max.Ø380，Optional Ø500
	Max. load（kg）	Max.20
Decoded mode	Barcode camera attach on rewinding arm	Optional
Decoded mode
Splicing Rate	Cycle Time (sec)	≤10S（not including LCR test time and manual feeding time）
Splicing capacity	Splicing FPY	98%
	Splicing gap（mm）	±0.1
	Anti-torque capacity of the material inlet	360 degrees (plastic strap, length of the material inlet at both ends is 250mm)
Software contro	Automatic component pitch identification	Standard
	Component size comparison	Standard
	BOM import wizard	Standard
	OCR	Optional
LCR	Measurement accuracy	±0.05%
	Measurement range	L：0μH-1000H，C：0pF-20mF，R：0Ω-20MΩ
	Measurement method	Two-sided measurement value
	Test pass rate	95%（01005 Component）
Electricity	Power supply mode	24V DC 50Ah Lithium battery
	Battery time (when fully charged)（h）	12-16
	Power（W）	Max.120
Facilities Requirements	Weight（Kg）	95
Facilities Requirements	Reference Dimension（mm）	540(W) × 540(L) × 1460(H)
Other configurations are optional	MES customization, Barcode printer, Component reels stop function, Rotational speed sensor function, Fool-proofing function for rewinding arm, Laser height measurement function,Auto return device, Auto tape width recognition, Auto tape pitch recognition for 12-24mm tape, Direct power supply, Wireless charging, Motion platform, Heavy motion platform.
