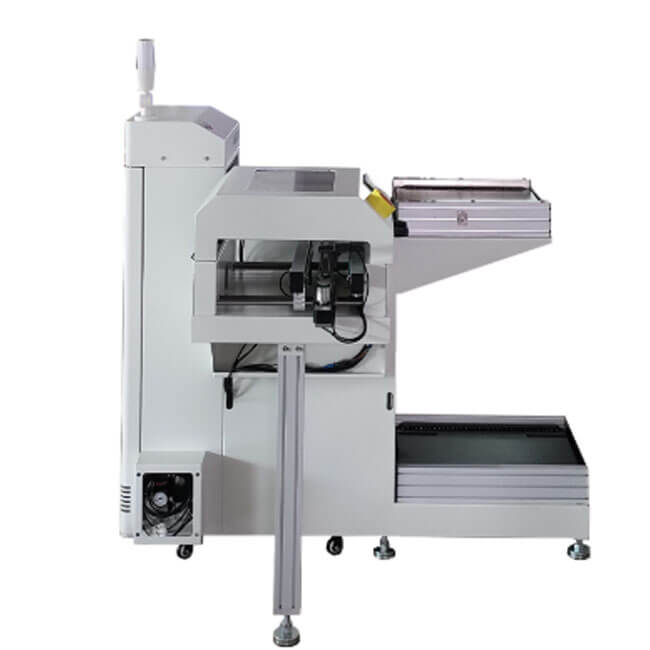

L-Shaped PCB Unloader Machine

The pcb surface of the lower board adopts the programmable controller system, stable structure and transmission track, beautiful. The main function of the solder paste press is to print the solder paste on the solder paste press, and then carry out the absorption of the solder paste. Due to the viscosity of the solder paste, it does not need to be mounted on the pcb board, but the solder paste is sent to the inside of the plate suction machine. This makes the process of smt production and processing more convenient. In addition, because the electronic products into the smt production and processing need to go through a series of tests and evaluations. The board machine adopts plc control, which can realize the function of automatic rising height, and can adjust the height of the board machine according to different working environment. Because it is controlled by plc, the power supply and power socket of the board machine are controlled by plc.

L-Shaped Automatic Unloader MachineProduct features:
Appearance structure: sheet metal structure and aluminum profiles into the frame, surface spray treatment, color is white.
Microcomputer PLC control system, stable and reliable work.
Touch screen display operation, with automatic fault diagnosis function, man-machine dialogue is convenient.
Multiple sound, light and touch screen prompt alarm function.
The lifting step of the rack can be set according to the PCB thickness.
With automatic counting function, convenient production statistics.
Humanized design ensures that the PCB board is not broken and improves the output capacity
The bottom connection receiving PCB board uses a motor to feed the board to the material frame
Stepper motor push plate, the force can be adjusted, the speed can be set on the touch screen,
The push-plate device uses two end limits to protect the PCB board
