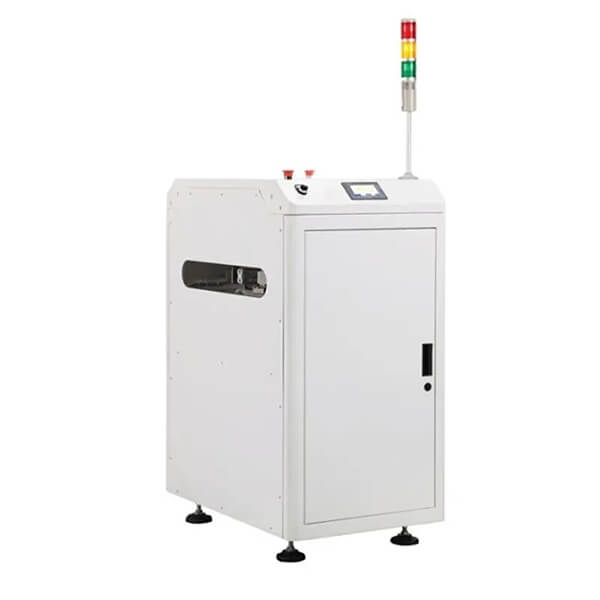

PCB Flip Reversak Machine
PCB Flip Reversak Machine is used for flipping circuit boards (180°) in SMT production line to meet the needs of double-sided processing. It adopts cylinder flipping, which is fast, stable and accurate. Smooth and parallel width adjustment. PLC control system, true color touch screen man-machine control, multiple electrical power distribution return protection, safe and reliable, easier operation and maintenance, compatible with SMEMA interface
1) Dimensions: L600㎜*W910㎜*H1400
2) The height of the guide rail from the ground is adjustable at 910±20㎜
3) The length of the guide rail is 586, and the width is adjustable from 50-460
4) PCB specification: PCB specification is L500XW460X&5, weight is not more than 2KG
5) PCB board transfer speed 0~4m/min
6) Belt specification 3.5mm flat belt, German IGUS resistant to winding
7) It should be flipped and flexible, and the guide rail can be smoothly connected to the PCB board with the upper and lower equipment
8) The flipping power is driven by a stepping motor
9) Fully enclosed box shape, surrounded by sealing plates, surface paint, computer white,
10) Panasonic PLC control, touch screen operation panel
11) Conveying direction: switch at will Panasonic/sick sensor Airtac cylinder
12) Power 220V AC/50HZ/2A; Air source: 0.4~0.6Mpa
12) One set of electric control box
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
