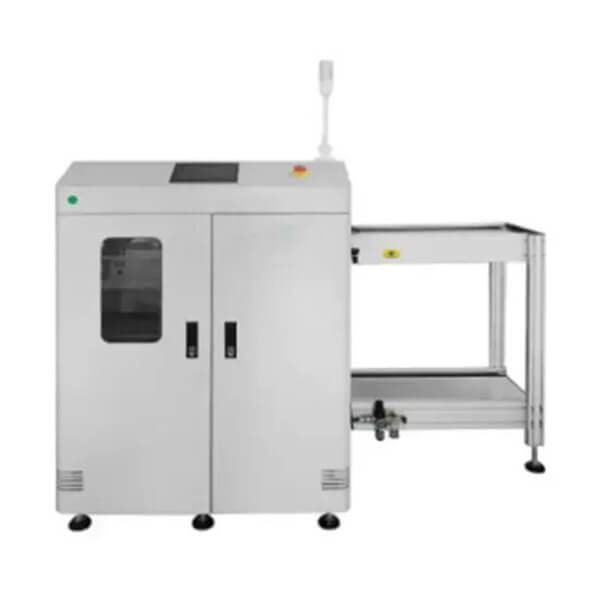

Automatic Magazine&Vacuum PCB loader
Fully automatic suction and delivery all-in-one machine SMT peripheral equipment PCB loading machine
The suction board integrated machine is used at the front end of the SMT production line. It has two board loading modes: material box loading and vacuum suction loading, which can be used for single-panel or double-panel.The control system adopts PLC control, the operation interface adopts touch screen, and is equipped with standard SMEMA signal line; the lifting structure adopts motor lifting setting, and the effective setting step distance can be selected; 10mm, 20mm, 30mm, 40mm, optional frequency converter; The suction board method adopts the vacuum suction board method, and 200-300 PCBs can be stacked each time (determined according to the thickness of the board).
1. This equipment is used at the source of the SMT production line. The bare board can use the suction board function, and the non-bare board can use the board loading function to make the production more efficient and practical;
2. Two loading modes are standard, especially suitable for single-line mode of double-panel production line;
3. PLC control system, true color touch screen man-machine control;
4. Auxiliary positioning brake system, accurate positioning, fast lifting speed and high production efficiency;
5. Multiple electrical distribution circuit protection, reliable use;
6. Sound and light prompt alarm system, easier to operate and maintain;
7. Compatible with SMEMA interface, it can be operated online and automatically with other equipment;
| Power supply | AC 220V/ 50/60Hz |
| Air supply | 5 kg f/cm² |
| PCB size (mm) | 330*50~250 |
| Transport direction | Customize left to right or right to left |
| Magazine size (mm) | 335*320*565 |
| Step pitches | 10,20,30,40mm choosable |
| Storage height | 200 mm |
| Transport height | 900 ± 20 mm |
| Main motor power | 300w |
| Machine size | 1650*900*1250 |
| Weight (kg) | 230 |
| Control panel | Touch screen |
