L-Shaped PCB Loader Machine

BASIC INFO

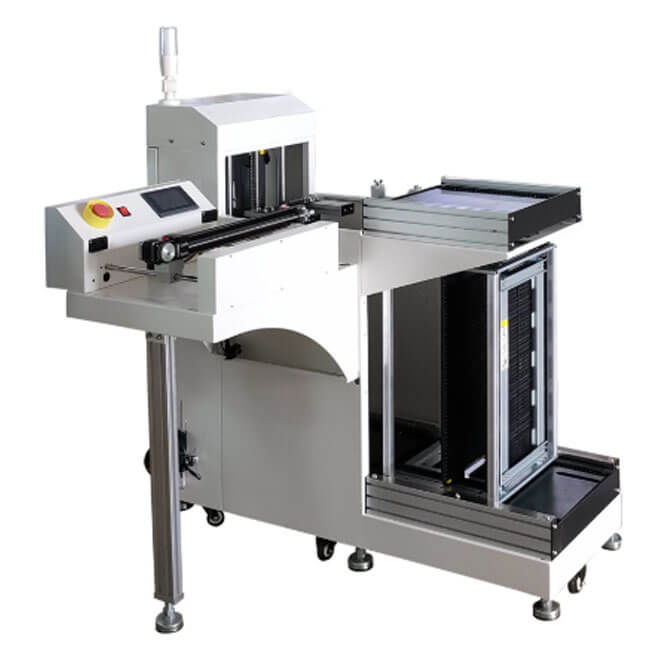

L-Shaped PCB Loader Machine

Using a push rod to send the empty PC board into the printing press, suitable for SMT and AI automatic production line to send the board, without touching the PCB board by hand, to better protect the PCB board. With a variety of upper and lower board racks (magazines), it can cope with the transmission of different sizes of PCBS. PCB needs to be put into the upper and lower board racks in advance, and the machine automatically pushes the board into the production line one by one according to the signal of the equipment behind, without touching the PCB board by hand, which better protects the PCB board, and can set the automatic control of the single lift and fall number; This machine has the functions of high lifting precision, automatic counting and fault alarm, and is the equipment to realize the whole line automation

1. Automatic board machine to achieve SMT process automatic precision production, and adapt to other similar PCB board products before and after the mechanical loading and unloading;
2. The automatic loading machine reduces the oxidation of the pad brought by manual loading, and saves a lot of human resources, which is the outstanding feature of this machine.
3. Imported PLC control, high degree of automation, for the stable work of the machinery escort;
4. With the function of setting a single rise height, when the PCB has a welded component height can be set a single lift number, the height can be separated by 10 cells;
5. The frame is made of thickened patent mold aluminum profile, material selection, strong and firm;
6. The automatic loading machine adopts high precision SMC cylinder push rod imported from Japan to ensure the reliable and correct operation of the loading plate;
Seven. This set of equipment is used for automatic loading and unloading of the machine before and after the equipment, with automatic lifting/automatic counting/automatic entry and exit of the material frame and fault alarm functions, is to achieve online/wired automation equipment.
8. Various sizes of PCBS can be made according to different sizes of customers.
