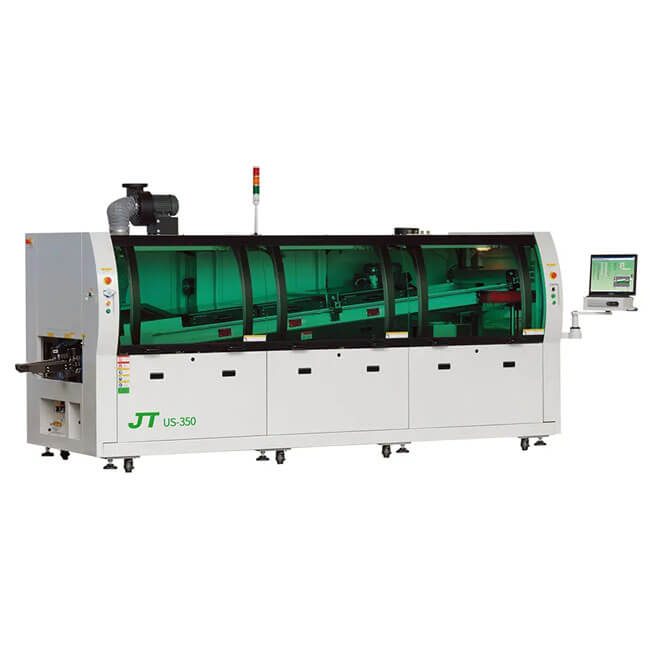

JT US-350 US-450 US-610 Wave Soldering Machine
US Series Lead-free Wave Soldering System
● The movement of the nozzle realizes dual-axis linkage in the X.Y direction, and is driven by a stepping motor, with accurate positioning. The programming control method is flexible, which can meet the complex process requirements, such as partial secondary spraying, partial continuous spraying, etc.;
● Free combination of hot air and infrared preheating modules (3-stage preheating): When preheating PCB products with different process requirements, any combination of preheating methods can be used to improve the preheating ability;
● New tin furnace and crest nozzle design: Adjustable tin wave drop design, effectively reducing tin dross generation;
● The maximum transport capacity of the guide rail is 60KG: The innovative transportation chain assembly structure and support method provide more stable transportation speed and higher transportation carrying capacity;
● The cooling system adopts the upper and lower blowing structure design, and the cooling efficiency is flexibly controlled.
Description
| MODEL | US-350 | |
| GENERAL | ||
| Wave Soldering Outside Dimension(L*W*H) | 4350×1600×1730mm | |
| Power Supply | 3P5W 380V AC 50/60Hz 100A | Option:3P5W 220V AC 50/60Hz 150A |
| Power demand | 80KW (Total Power * 1.2 Safety Factor) Hot Air | |
| Electrical Control | ||
| Total power | 45KW （+6KW/PCS For Each Additional Preheating Module） | |
| Operating power | ≤9KW | |
| Control mode | PC＋PLC | |
| Preheating System | ||
| Preheat mode | Hot Air | IR |
| Speed regulation mode | Stepless Frequency Control | N/A |
| Preheat zones number | 3 | Option: Upper preheating（MAX 3PCS） |
| Preheat zone length | 1800mm(2480mm optional 4 preheat） | |
| Preheat temperature | Room Temperature ～250℃ | |
| Welding System | ||
| Working mode of tin furnace | Mechanical Pump | |
| Power of heating tube of tin furnace | 14.5KW | |
| Tin furnace capacity | Lead-free： About 480KG | |
| MAX temp of tin furnace | MAX: 300℃ | |
| Temp. control method | PID+SSR | |
| Wave driving power | 1/4 HP×2 3P 220VAC | |
| Warming up time | About 180 min（Set：250℃） | |
| PCB Transport System | ||
| Width range of PCB | 50-350mm | |
| PCB board component height | Top 90mm,Bottom 25mm | |
| PCB transmission speed | 300~1800mm/min | |
| PCB inlet transport height | 750±20mm | Option: Booster Pad 100mm 150mm 200mm 250mm |
| Transport guide rail inclination | Factory：5.5°±0.2°（4°— 7°Adjustable） | |
| Transmission motor power | 90W 3P 220VAC | |
| N2 System (Option) | ||
| nitrogen consumption | 25m³/h below 1000ppm | |
| pressure nitrogen source | 0.5～0.8MPa | |
| Others | ||
| Flux Automatic Addition | Equipped with corrosion-resistant air-operated diaphragm pump | |
| Spray Flow | 20~100ml/min | |
| Exhaust pipe dimeter | Φ200mm | |
| Air cooler | Option | 2HP |
| MODEL | US-450 | |
| GENERAL | ||
| Wave Soldering Outside Dimension(L*W*H) | 4350×1600×1730mm | |
| Power Supply | 3P5W 380V AC 50/60Hz 63A | Option:3P5W 220V AC 50/60Hz 110A |
| Power demand | 80KW (Total Power * 1.2 Safety Factor) Hot Air | |
| Electrical Control | ||
| Total power | 45KW （+6KW/PCS For Each Additional Preheating Module） | |
| Operating power | ≤10KW | |
| Control mode | PC＋PLC | |
| Preheating System | ||
| Preheat mode | Hot Air | IR |
| Speed regulation mode | Stepless Frequency Control | N/A |
| Preheat zones number | 3 | Option: Upper preheating（MAX 3PCS） |
| Preheat zone length | 1800mm(2480mm optional 4 preheat） | |
| Preheat temperature | Room Temperature～250℃ | |
| Welding System | ||
| Working mode of tin furnace | Mechanical Pump | |
| Power of heating tube of tin furnace | 14.5KW | |
| Tin furnace capacity | Lead-free：About 550KG | |
| MAX temp of tin furnace | MAX: 300℃ | |
| Temp. control method | PID+SSR | |
| Wave driving power | 1/2 HP×2 3P 220VAC | |
| Warming up time | About 180 min（Set：250℃） | |
| PCB Transport System | ||
| Width range of PCB | 50-450mm | |
| PCB board component height | Top 90mm,Bottom 25mm | |
| PCB transmission speed | 300~1800mm/min | |
| PCB inlet transport height | 750±20mm | Option: Booster Pad 100mm 150mm 200mm 250mm |
| Transport guide rail inclination | Factory：5.5°±0.2°（4°— 7°Adjustable） | |
| Transmission motor power | 90W 3P 220VAC | |
| N2 System (Option) | ||
| nitrogen consumption | 25m³/h below 1000ppm | |
| pressure nitrogen source | 0.5～0.8MPa | |
| Others | ||
| Flux Automatic Addition | Equipped with corrosion-resistant air-operated diaphragm pump | |
| Spray Flow | 20~100ml/min | |
| Exhaust pipe dimeter | Φ200mm | |
| Air cooler | Option | 2HP |
| MODEL | US-610 | |
| GENERAL | ||
| Wave Soldering Outside Dimension(L*W*H) | 4494×1955×1730mm | |
| Power Supply | 3P5W 380V AC 50/60Hz 150A | Option:3P5W 220V AC 50/60Hz 200A |
| Power demand | 90KW (Total Power * 1.5 Safety Factor) Hot Air | |
| Electrical Control | ||
| Total power | 50KW （+9KW/PCS For Each Additional Preheating Module） | |
| Operating power | ≤13KW | |
| Control mode | PC＋PLC | |
| Preheating System | ||
| Preheat mode | Hot Air | IR |
| Speed regulation mode | Stepless Frequency Control | N/A |
| Preheat zones number | 3 | Option:Upper preheating（MAX 4PCS） |
| Preheat zone length | 1800mm(2480mm optional 4 preheat） | |
| Preheat temperature | Room Temperature～250℃ | |
| Welding System | ||
| Working mode of tin furnace | Mechanical Pump | |
| Power of heating tube of tin furnace | 18KW | |
| Tin furnace capacity | Lead-free：About 800KG | |
| MAX temp of tin furnace | MAX: 300℃ | |
| Temp. control method | PID+SSR | |
| Wave driving power | 1/2 HP×1+1HP×1 3P 220VAC | |
| Warming up time | About 180 min（Set：250℃） | |
| PCB Transport System | ||
| Width range of PCB | 60-610mm | |
| PCB board component height | Top 90mm,Bottom 30mm | |
| PCB transmission speed | 300~1800mm/min | |
| PCB inlet transport height | 750±20mm | Option:Booster Pad 100mm 150mm 200mm 250mm |
| Transport guide rail inclination | Factory：5.5°±0.2°（4°— 7°Adjustable） | |
| Transmission motor power | 90W 3P 220VAC | |
| N2 System (Option) | ||
| nitrogen consumption | 25m³/h below 1000ppm | |
| pressure nitrogen source | 0.5～0.8MPa | |
| Others | ||
| Flux Automatic Addition | Equipped with corrosion-resistant air-operated diaphragm pump | |
| Spray Flow | 20~100ml/min | |
| Exhaust pipe dimeter | Φ200mm | |
| Air cooler | Option | 2HP |
