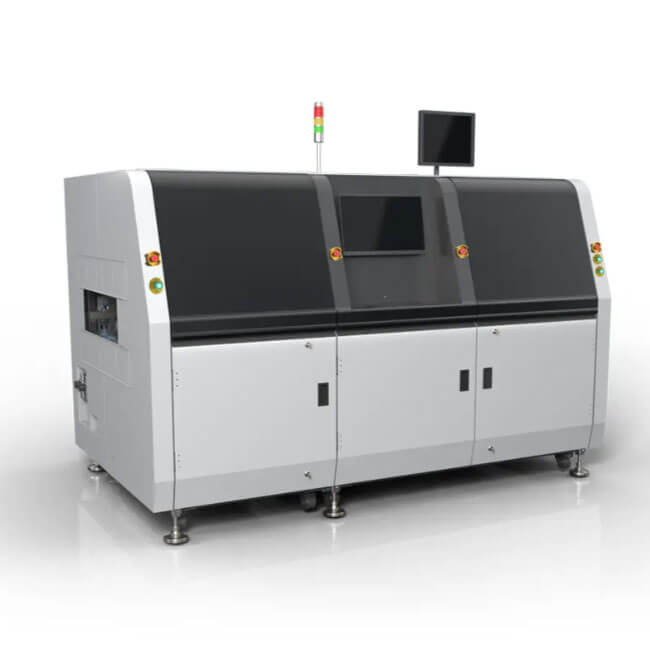

JT JNS-450 Selective Wave Soldering Machine
JNS Integrated Selective Soldering
● Spray Fluxer + Preheating + Soldering module, integrated design, flexible configuration and free expansion;
● The point soldering module and the group soldering module are freely matched and combined;
● The most efficient selective soldering module;
● Sectional modular transmission structure.
Description
| Model | JNS-450 |
| Parameters | |
| Dimension L×W×H | 2600×1800×1650mm（1-2 pot） |
| Transporting System | |
| PCB Width | 60-450mm |
| PCB Length | 120-500mm |
| PCB Top Space | Max ：120mm |
| PCB Bottom Space | Max ：50mm |
| PCB Edge Size | 4mm |
| Conveyor Height | 900±20 |
| Conveying Speed | 0.2-10m/min |
| PCB Weight | Max:5kg |
| Fluxer Module | |
| Flux Capacity | 2L |
| The Size of Flux Nozzle Tube | 130um |
| Flux Width | 2-8mm |
| Preheating Module | |
| Bottom movable Infrared Heater | Max:14kw |
| Temperature Range | Room Temperature-250℃ |
| Top Air Heater | Max：6kw |
| Soldering Module | |
| Min Diameter of Solder Nozzle | ¢2/4.5 |
| Wave Height | 3〜5mm |
| Solder Pot Capacity | 8KG（Solenoid Pump）/13KG（Mechanical Pump） |
| Soldering Temperature | Max：350℃ |
| Heating Time | 40min/(Mechanical Pump 300℃）/75min/(Solenoid Pump 300℃） |
| Pot Heating Power | 1KW/ Single pot |
| Location Speed | X/Y：2-200mm/s |
| Temp.Control Accuraey | ±2℃ |
| Soldering Accuracy | ±0.25mm |
| Control System | |
| PC Operating System | Windows 10 |
| Process Visualization | CCD Visual |
| Software Language | Chinese and English Changeable |
| Programming Mode | Inline/Off line Programming |
| Data Import | Gerber、ImageꢀIntroduction |
| Air System | |
| Air Supply | N2/O2 |
| Required Pressure | 0.4-0.8Mpa |
| N2 Consumption | Eachꢀconsumesꢀaboutꢀ1.5-2ꢀm³/h |
| N2 Concentration | ≥99.999% |
| Electrical Parameter | |
| Power Supply | AC 380VAC 3Φ5W 50/60Hz |
| Consumption | 35KW |
| Air Exhaust | |
| Air Duct Diameter | ¢200mm x3 |
| Exhaust Air Rate | 360 m³/h |
